Microsoft Entra identity management and access management for AWS

This article provides AWS identity architects, administrators, and security analysts with immediate insights and detailed guidance to deploy Microsoft Entra identity and access solutions for AWS. You can configure and test these Microsoft security solutions without affecting your existing identity providers and AWS account users until you're ready to switch.

Architecture

AWS creates a separate Identity and Access Management (IAM) store for each account. The following diagram shows the standard setup for an AWS environment with a single AWS account:

The root user fully controls the AWS account and delegates access to other identities. The AWS IAM principal provides a unique identity for each role and user that needs to access the AWS account. AWS IAM can protect each root, principal, and user account with a complex password and basic MFA.

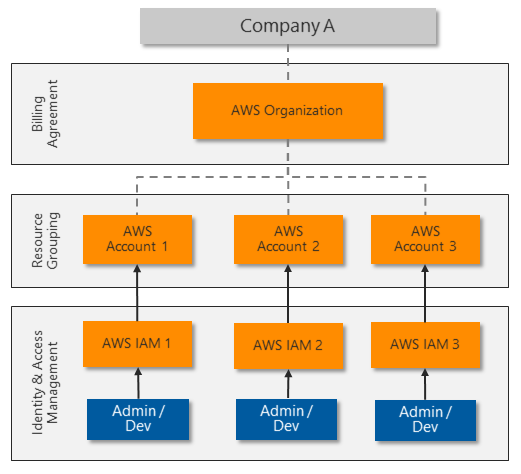

Many organizations need more than one AWS account, resulting in identity silos that are hard to manage:

To allow centralized identity management and avoid managing multiple identities and passwords, most organizations want to use single sign-on for platform resources. Some AWS customers rely on Windows Server Active Directory for SSO integration. Other customers invest in non-Microsoft solutions to synchronize or federate their identities and provide SSO.

Microsoft Entra ID provides centralized identity management with strong single sign-on (SSO) authentication. Almost any app or platform that follows common web authentication standards, including AWS, can use Microsoft Entra ID for identity and access management.

Many organizations already use Microsoft Entra ID to assign and protect Microsoft 365 and hybrid cloud identities. Employees use their Microsoft Entra identities to access email, files, instant messaging, cloud applications, and on-premises resources. Integrate Microsoft Entra ID with your AWS accounts to let administrators and developers sign in to your AWS environments with their existing identities.

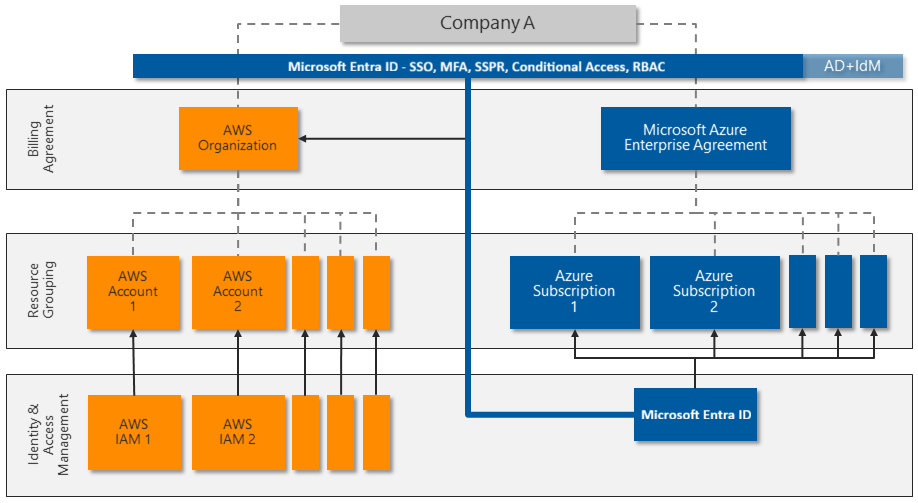

The following diagram shows how Microsoft Entra ID can integrate with multiple AWS accounts to provide centralized identity and access management:

Microsoft Entra ID offers several capabilities for direct integration with AWS:

• Single sign-on (SSO) across legacy, traditional, and modern authentication solutions.
• Multifactor authentication (MFA), including integration with non-Microsoft solutions through external authentication methods.
• Conditional Access features for strong authentication and governance. Microsoft Entra ID uses Conditional Access policies and risk-based assessments to authenticate and authorize user access to the AWS Management Console and AWS resources.
• Large-scale threat detection and automated response. Microsoft processes over 30 billion authentication requests per day, along with trillions of signals about threats worldwide.
• Privileged Identity Management (PIM) to enable Just-In-Time (JIT) access to specific resources.

Advanced Microsoft Entra identity management with AWS accounts

Other advanced Microsoft Entra features provide extra layers of control for the most sensitive AWS accounts. Microsoft Entra ID P2 licenses include these advanced features:

• Privileged Identity Management (PIM) provides advanced controls for all delegated roles within Azure and Microsoft 365. For example, instead of a user administrator being statically assigned the User Administrator role, they activate the role on demand. This permission deactivates after a set time limit (one hour, for example). PIM logs all activations and has other controls that further restrict the activation capabilities. PIM further protects your identity architecture by ensuring extra layers of governance and protection before privileged users can make changes.

  Expand PIM to any delegated permission by controlling access to custom groups, such as the ones you created for access to AWS roles. For more information about deploying PIM, see Plan a Privileged Identity Management deployment.

• Microsoft Entra ID Protection increases Microsoft Entra sign-in security by monitoring user or session risk. User risk defines the potential of the credentials being compromised, such as the user ID and password appearing in a publicly released breach list. Sign-in risk determines whether the sign-in activity comes from a risky location, IP address, or other indicator of compromise. Both detection types rely on Microsoft's comprehensive threat intelligence capabilities.

  For more information, see the Microsoft Entra ID Protection security overview.

• Microsoft Defender for Identity protects identities and services running on Active Directory domain controllers by monitoring all activity and threat signals. Defender for Identity identifies threats based on real-world experience from investigations of customer breaches. Defender for Identity monitors user behavior and recommends attack surface reductions to prevent advanced attacks like reconnaissance, lateral movement, and domain dominance.

  For more information about Defender for Identity, see What is Microsoft Defender for Identity.

Scenario details

Amazon Web Services (AWS) accounts that support critical workloads and highly sensitive information require strong identity protection and access control. AWS identity management is enhanced when combined with Microsoft Entra ID. Microsoft Entra ID is a cloud-based, comprehensive, centralized identity and access management solution that helps secure and protect AWS accounts and environments. Microsoft Entra ID provides centralized single sign-on (SSO) and strong authentication through multifactor authentication (MFA) and Conditional Access policies. Microsoft Entra ID supports AWS identity management, role-based identities, and access control.

Many organizations that use AWS rely on Microsoft Entra ID for Microsoft 365 or hybrid cloud identity management and access protection. These organizations can use Microsoft Entra ID with their AWS accounts, often at no extra cost. Other advanced Microsoft Entra features like Privileged Identity Management (PIM) and Microsoft Entra ID Protection can help protect the most sensitive AWS accounts.

Microsoft Entra ID integrates with other Microsoft security solutions, like Microsoft Defender for Cloud Apps and Microsoft Sentinel. For more information, see Defender for Cloud Apps and Microsoft Sentinel for AWS. Microsoft security solutions are extensible and provide multiple levels of protection. Organizations can implement one or more of these solutions along with other types of protection for a full security architecture that protects current and future AWS deployments.

Considerations

These considerations implement the pillars of the Azure Well-Architected Framework, which is a set of guiding tenets that you can use to improve the quality of a workload. For more information, see Microsoft Azure Well-Architected Framework.

Security

Security provides assurances against deliberate attacks and abuse of your valuable data and systems. For more information, see Design review checklist for Security.

The following principles and guidelines are important for any cloud security solution:

• Follow the principles of Zero Trust: verify explicitly, use least privilege, and assume breach. Instead of believing everything behind the corporate firewall is safe, the Zero Trust model assumes breach and verifies each request as though it originated from an uncontrolled network. Regardless of where the request originates or what resource it accesses, the Zero Trust model teaches us to "never trust, always verify."

• Ensure that the organization can monitor, detect, and automatically protect user and programmatic access into cloud environments.

• Continually review current accounts to ensure identity and permission governance and control.

• Continuously monitor platform configuration changes, especially if they provide opportunities for privilege escalation or attack persistence.

• Prevent unauthorized data exfiltration by actively inspecting and controlling content.

• Take advantage of solutions you might already own that can increase security without more expense.

Basic AWS account security

To ensure basic security hygiene for AWS accounts and resources:

• Review the AWS security guidance at Best practices for securing AWS accounts and resources.

• Reduce the risk of uploading and downloading malware and other malicious content by actively inspecting all data transfers through the AWS Management Console. Content that uploads or downloads directly to resources within the AWS platform, such as web servers or databases, might need more protection.

• Consider protecting access to other resources, including:

  • Resources created within the AWS account.
  • Specific workload platforms, like Windows Server, Linux Server, or containers.
  • Devices that administrators and developers use to access the AWS Management Console.

AWS IAM security

A key aspect of securing the AWS Management Console is controlling who can make sensitive configuration changes. The AWS account root user has unrestricted access. The security team should fully control the root user account to prevent it from signing in to the AWS Management Console or working with AWS resources.

To control the root user account:

• Consider changing the root user sign-in credentials from an individual's email address to a service account that the security team controls.
• Make sure the root user account password is complex, and enforce MFA for the root user.
• Monitor logs for instances of the root user account being used to sign in.
• Use the root user account only in emergencies.
• Use Microsoft Entra ID to implement delegated administrative access rather than using the root user for administrative tasks.

Clearly understand and review other AWS IAM account components for appropriate mapping and assignments.

• By default, an AWS account has no IAM users until the root user creates one or more identities to delegate access. A solution that synchronizes existing users from another identity system, such as Windows Server Active Directory, can also automatically provision IAM users.

• IAM policies provide delegated access rights to AWS account resources. AWS provides over 750 unique IAM policies, and customers can also define custom policies.

• IAM roles attach specific policies to identities. Roles are the way to administer role-based access control (RBAC). This solution uses External Identities to implement Microsoft Entra identities by assuming IAM roles.

• IAM groups are also a way to administer RBAC. Instead of assigning IAM policies directly to individual IAM users, create an IAM group, assign permissions by attaching one or more IAM policies, and add IAM users to the group to inherit the appropriate access rights to resources.

Some IAM service accounts must continue to run in AWS IAM to provide programmatic access. Be sure to review these accounts, securely store and restrict access to their security credentials, and rotate the credentials regularly.

Deploy this scenario

This next section shows you how to deploy Microsoft Entra ID for single sign-on to an individual AWS account.

Plan and prepare

To prepare for deployment of Azure security solutions, review and record current AWS account and Microsoft Entra information. If you have more than one AWS account deployed, repeat these steps for each account.

1. In the AWS Billing Management Console, record the following current AWS account information:

   • AWS Account Id, a unique identifier.
   • Account Name or root user.
   • Payment method, whether assigned to a credit card or a company billing agreement.
   • Alternate contacts who have access to AWS account information.
   • Security questions securely updated and recorded for emergency access.
   • AWS regions enabled or disabled to comply with data security policy.

2. In the AWS IAM Management Console, review and record the following AWS IAM components:

   • Groups that have been created, including detailed membership and role-based mapping policies attached.
   • Users that have been created, including the Password age for user accounts, and the Access key age for service accounts. Also confirm that MFA is enabled for each user.
   • Roles. There are two default service-linked roles, AWSServiceRoleForSupport and AWSServiceRoleForTrustedAdvisor. Record any other roles, which are custom. These roles link to permission policies, to use for mapping roles in Microsoft Entra ID.
   • Policies. Out-of-the-box policies have AWS managed, Job function, or Customer managed in the Type column. Record all other policies, which are custom. Also record where each policy is assigned, from the entries in the Used as column.
   • Identity providers, to understand any existing Security Assertion Markup Language (SAML) identity providers. Plan how to replace the existing identity providers with the single Microsoft Entra identity provider.

3. In the Microsoft Entra admin center, review the Microsoft Entra tenant:

   • Assess Tenant information to see whether the tenant has a Microsoft Entra ID P1 or P2 license.
   • Assess Enterprise applications to see whether any existing applications use the AWS application type, as shown by http://aws.amazon.com/ in the Homepage URL column.

Plan Microsoft Entra deployment

The Microsoft Entra deployment procedures assume that Microsoft Entra ID is already configured for the organization, such as for a Microsoft 365 implementation. Accounts can be synchronized from an Active Directory domain, or can be cloud accounts created directly in Microsoft Entra ID.

Plan RBAC

If the AWS installation uses IAM groups and roles for RBAC, you can map the existing RBAC structure to new Microsoft Entra user accounts and security groups.

If the AWS account doesn't have a strong RBAC implementation, start by working on the most sensitive access:

1. Update the AWS account root user.

2. Review the AWS IAM users, groups, and roles that are attached to the IAM policy AdministratorAccess.

3. Work through the other assigned IAM policies, starting with policies that can modify, create, or delete resources and other configuration items. You can identify policies in use by looking at the Used as column.

Plan migration

Microsoft Entra ID centralizes all authentication and authorization. You can plan and configure user mapping and RBAC without affecting administrators and developers until you're ready to enforce the new methods.

The high-level process for migrating from AWS IAM accounts to Microsoft Entra ID is as follows. For detailed instructions, see Deployment.

1. Map IAM policies to Microsoft Entra roles, and use RBAC to map roles to security groups.

2. Replace each IAM user with a Microsoft Entra user who is a member of the appropriate security groups to sign in and gain appropriate permissions.

3. Test by asking each user to sign in to AWS with their Microsoft Entra account and confirm that they have the appropriate access level.

4. Once the user confirms Microsoft Entra ID access, remove the AWS IAM user account. Repeat the process for each user until they're all migrated.

For service accounts and programmatic access, use the same approach. Update each application that uses the account to use an equivalent Microsoft Entra user account instead.

Make sure any remaining AWS IAM users have complex passwords with MFA enabled, or an access key that's replaced regularly.

The following diagram shows an example of the configuration steps and final policy and role mapping across Microsoft Entra ID and AWS IAM:

Single sign-on integration

Microsoft Entra ID supports single sign-on integration with AWS SSO. You can connect Microsoft Entra ID to AWS in one place and centrally govern access across hundreds of accounts and AWS SSO integrated applications. This capability enables Microsoft Entra sign-in for users who use the AWS CLI.

The following Microsoft security solution procedure implements SSO for the example roles AWS Administrators and AWS Developers. Repeat this process for any other roles you need.

This procedure covers the following steps:

1. Create a new Microsoft Entra enterprise application.
2. Configure Microsoft Entra SSO for AWS.
3. Update role mapping.
4. Test Microsoft Entra SSO into AWS Management Console.

The following links provide full detailed implementation steps and troubleshooting:

• Microsoft tutorial: Microsoft Entra SSO integration with AWS
• AWS tutorial: Microsoft Entra ID to AWS SSO using the SCIM protocol

Add an AWS app to your Microsoft Entra enterprise applications

AWS administrators and developers use an enterprise application to sign in to Microsoft Entra ID for authentication, then redirect to AWS for authorization and access to AWS resources. One way to access the application is by signing in to https://myapps.microsoft.com, but you can also publish the unique URL anywhere that provides direct access.

Follow the instructions in add Amazon Web Services (AWS) from the gallery to set up the enterprise application. These instructions let you know what AWS app to add to your Microsoft Entra enterprise applications.

If there's more than one AWS account to administer, such as DevTest and Production, use a unique name for the enterprise application that includes an identifier for the company and specific AWS account.

Configure Microsoft Entra SSO for AWS

Use the following steps to configure Microsoft Entra SSO for AWS:

1. Follow the steps in the article Configure Microsoft Entra SSO to configure the Enterprise Application you've created for single sign-on to AWS.

2. On AWS Console, follow the steps on Configure AWS SSO to configure your AWS account for single sign-on. As part of this configuration, you create a new IAM user that acts on behalf of the Microsoft Entra provisioning agent to allow synchronization of all available AWS IAM roles into Microsoft Entra ID. AWS needs this IAM user to map users to roles before they can sign in to the AWS Management Console.

• Make it clear which components you create to support this integration. For example, name service accounts with a standard naming convention like "Svc-".
• Be sure to document all new items.
• Make sure any new credentials include complex passwords that you store centrally for secure lifecycle management.

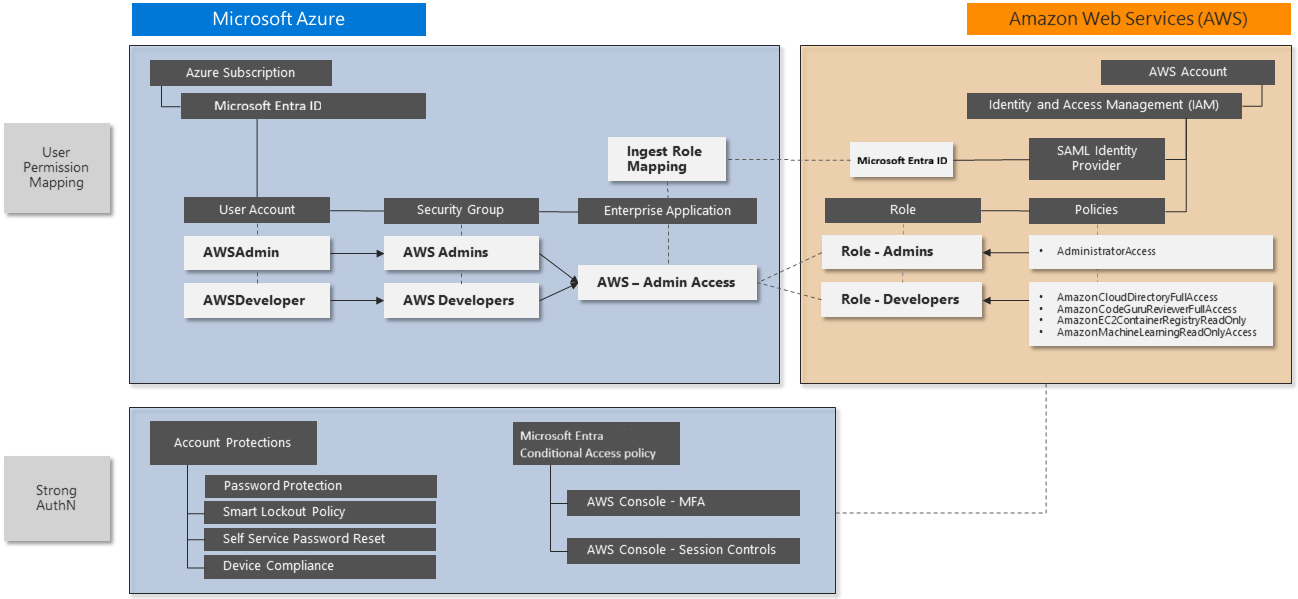

Based on these configuration steps, you can diagram the interactions like this:

On AWS Console, use the following steps to create more roles.

1. In AWS IAM, select Roles -> Create Role.

2. On the Create role page, perform the following steps:

   1. Under Select type of trusted entity, select SAML 2.0 federation.
   2. Under Choose a SAML 2.0 Provider, select the SAML provider you created in the previous step.
   3. Select Allow programmatic and AWS Management Console access.
   4. Select Next: Permissions.

3. On the Attach permissions policies dialog box, select AdministratorAccess. Then select Next: Tags.

4. In the Add Tags dialog box, leave it blank and select Next: Review.

5. In the Review dialog box, perform the following steps:

   1. In Role Name, enter your role name (Administrator).
   2. In Role Description, enter the description.
   3. Select Create Role.

6. Create another role by following the previous steps. Name the role Developer and give it a few selected permissions of your choice (such as AmazonS3FullAccess).

   You've successfully created an Administrator and a Developer role in AWS.

7. Create the following users and groups in Microsoft Entra ID:

   • User 1: Test-AWSAdmin
   • User 2: Test-AWSDeveloper
   • Group 1: AWS-Account1-Administrators
   • Group 2: AWS-Account1-Developers
   • Add Test-AWSAdmin as a member of AWS-Account1-Administrators
   • Add Test-AWSDeveloper as a member of AWS-Account1-Developers

8. Follow the steps on How to configure role provisioning in AWS Single-Account Access to configure automated role provisioning. It can take up to one hour to complete the first provisioning cycle.

How to update role mapping

Because you're using two roles, perform these extra steps:

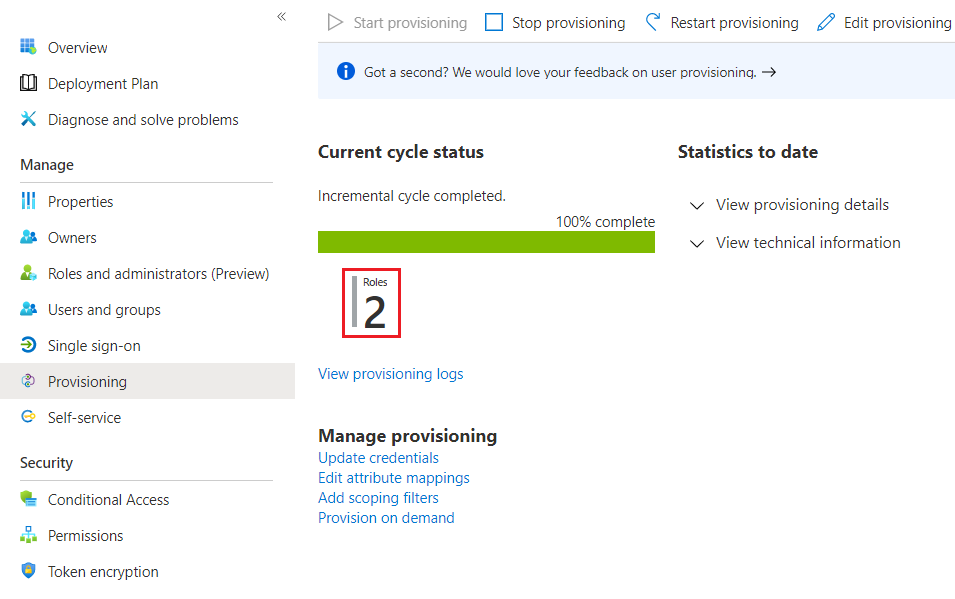

1. Confirm that the provisioning agent can see at least two roles:



2. Go to Users and groups and select Add User.

3. Select AWS-Account1-Administrators.

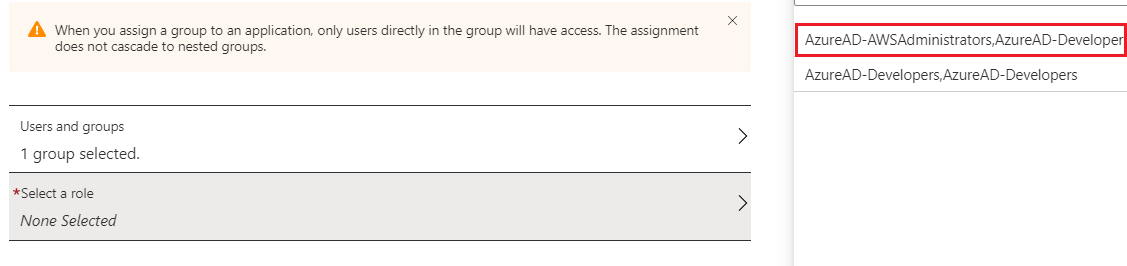

4. Select the associated role.

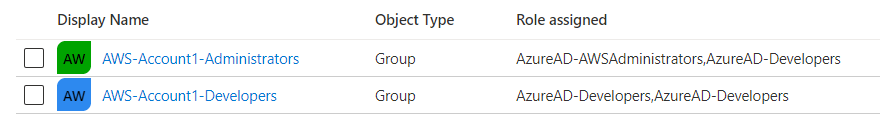

5. Repeat the preceding steps for each group-role mapping. Once complete, you should have two Microsoft Entra groups correctly mapped to AWS IAM roles:



If you can't see or select a role, go back to the Provisioning page to confirm successful provisioning in the Microsoft Entra provisioning agent, and make sure the IAM User account has the correct permissions. You can also restart the provisioning engine to attempt the import again:

Test Microsoft Entra SSO into AWS Management Console

Test signing-in as each of the test users to confirm that the SSO works.

1. Launch a new private browser session to ensure that other stored credentials don't conflict with testing.

2. Go to https://myapps.microsoft.com, using the Test-AWSAdmin or Test-AWSDeveloper Microsoft Entra user account credentials you created previously.

3. You should see the new icon for the AWS Console app. Select the icon, and follow any authentication prompts:



4. Once you're signed into the AWS Console, navigate the features to confirm that this account has the appropriate delegated access.

5. Notice the naming format for the user sign-in session:

   ROLE / UPN / AWS Account Number

   You can use this user sign-in session information for tracking user sign-in activity in Defender for Cloud Apps or Microsoft Sentinel.



6. Sign out, and repeat the process for the other test user account to confirm the differences in role mapping and permissions.

Enable Conditional Access

To create a new Conditional Access policy that requires MFA:

1. Sign in to the Microsoft Entra admin center as at least a Conditional Access Administrator.

2. Browse to Entra ID > Conditional Access > Policies.

3. Select New policy.

4. Complete the form as follows:

   1. Name: AWS Console – MFA
   2. Under Assignments, select Users or workload identities.
      1. Under Include, Select the two role groups you created earlier:
         1. AWS-Account1-Administrators
         2. AWS-Account1-Developers
      2. Under Exclude:
         1. Choose your organization's emergency access or break-glass accounts.
   3. Under Access controls > Grant, select Grant access, Require multifactor authentication, and select Select.

5. Set Enable policy to On.



6. Select Create. The policy takes effect immediately.

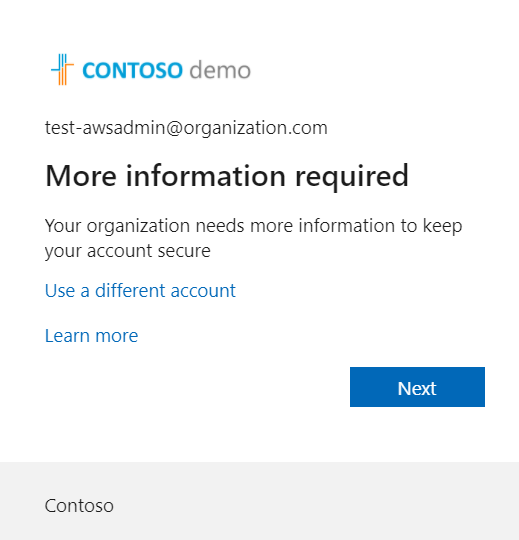

7. To test the Conditional Access policy, sign out of the testing accounts, open a new in-private browsing session, and sign in with one of the role group accounts. You see the MFA prompt:



8. Complete the MFA setup process. It's best to use a phishing-resistant method for authentication, instead of relying on SMS.

You might need to create several Conditional Access policies to meet business needs for strong authentication. Consider the naming convention you use when creating the policies to ensure ease of identification and ongoing maintenance. Also, unless MFA is already widely deployed, make sure the policy is scoped to affect only the intended users. Other policies should cover other user groups' needs.

Once you enable Conditional Access, you can impose other controls such as PAM and just-in-time (JIT) provisioning. For more information, see What is automated SaaS app user provisioning in Microsoft Entra ID.

If you have Defender for Cloud Apps, you can use Conditional Access to configure Defender for Cloud Apps session policies. For more information, see Configure Microsoft Entra session policies for AWS activities.

Next steps

• For security guidance from AWS, see Best practices for securing AWS accounts and resources
• For the latest Microsoft security information, see www.microsoft.com/security
• For full details of how to implement and manage Microsoft Entra ID, see Securing Azure environments with Microsoft Entra ID
• AWS tutorial: Microsoft Entra ID with IDP SSO
• Microsoft tutorial: SSO for AWS
• PIM deployment plan
• Identity protection overview
• What is Microsoft Defender for Identity?
• Connect AWS to Microsoft Defender for Cloud Apps
• How Defender for Cloud Apps helps protect your Amazon Web Services (AWS) environment

Related resources

• For in-depth coverage and comparison of Azure and AWS features, see the Azure for AWS professionals content set
• Identity on Azure and AWS
• Defender for Cloud Apps and Microsoft Sentinel for AWS
• Onboard an AWS account
• AWS single-account access
• AWS Single Sign-On
• Configure AWS Single Sign-On
• AWS ClientVPN
• Attach and detach policies
