GlyphRun in WPF doesn't seem to display dot-matrix fonts

Question

GlyphRun in WPF doesn't seem to display dot-matrix fonts

HoWe Yu 86

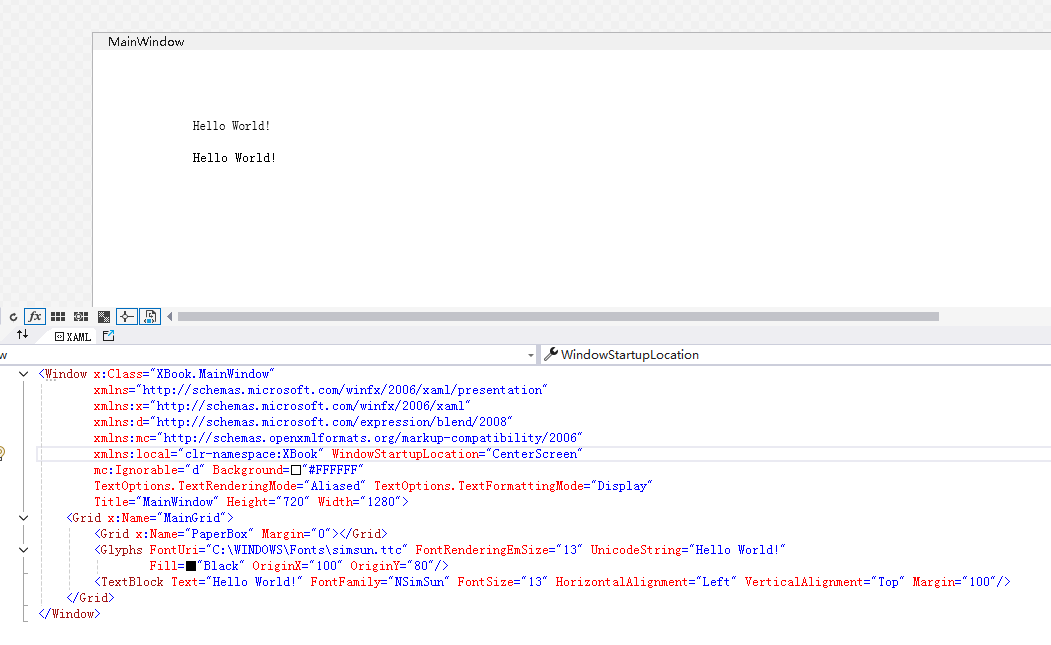

I placed two texts on the window, but the display effects are inconsistent. How can I make Glyphs achieve the same display effect as TextBlock?

Snipaste_2024-10-27_04-54-34

1 个答案

你的答案

Answer 1

匿名

Hi,@HoWe Yu. Welcome to Microsoft Q&A.

If you want the text rendered by Glyphs and TextBlock to be consistent, you could refer to the following solution.

You need to cancel the additional settings for TextBlock: you need to delete <Window>'s TextOptions.TextFormattingMode="Display".

Related code

<Window
		...
        WindowStartupLocation="CenterScreen"
        Background="#FFFFFF"
        TextOptions.TextRenderingMode="Aliased"
        Title="MainWindow" Height="720" Width="1280">

    <Grid x:Name="MainGrid">
        <Grid x:Name="PaperBox" Margin="0"></Grid>

        <Glyphs x:Name="MyGlyphs"  FontUri="C:\WINDOWS\Fonts\simsun.ttc" FontRenderingEmSize="13"  UnicodeString="Hello World!" Fill="Black" OriginX="100" OriginY="80" />

        <TextBlock x:Name="MyTextBlock" Text="Hello World!" FontFamily="NSimSun" FontSize="13" FontWeight="Normal" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="100"></TextBlock>
    </Grid>
</Window>

If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

HoWe Yu 86 信誉分

2024-10-31T19:25:15.0066667+00:00

I want Glyphs to render the same as TextBlock
匿名

2024-11-01T08:37:02.03+00:00

Hi,@HoWe Yu.

In my testing, I found that simply adjusting TextOptions.TextFormattingMode="Ideal" could make Glyphs and TextBlock render consistently.
HoWe Yu 86 信誉分

2024-11-01T19:41:40.6633333+00:00

Let me rephrase this: How to turn off anti-aliasing on Glyphs
匿名

2024-11-04T03:10:20.63+00:00
Hi,@HoWe Yu.

If you want to turn off anti-aliasing on Glyphs, you could try using the following code.

RenderOptions.SetEdgeMode(MyGlyphs,EdgeMode.Aliased);

However, text objects are always displayed with anti-aliasing, as described in the relevant documentation. Although you could explicitly specify the TextFormattingMode of Glyphs with the following code, you still cannot make Glyphs render the same font as the TextBlock.

TextOptions.SetTextFormattingMode(MyGlyphs,TextFormattingMode.Display);

Setting <Glyphs FontRenderingEmSize="14"> could render more similarly. If you want to enable TextOptions.TextFormattingMode="Display" and still need Glyphs to render the same, you may need a custom font.
