SQL Server on Azure VM fails to deploy or SQL Server instance fails to come online

This article helps you resolve the following scenarios:

• A SQL Server on Azure virtual machine (VM) Azure Marketplace image fails to deploy.
• A SQL Server instance fails to come online after an Azure VM is restarted or deallocated.

Applies to:  SQL Server on Azure VMs

Symptoms

If you encounter this issue, you likely see:

• SQL Server on Azure VM deployments failing when using an Azure Marketplace image.
• SQL Server failing to come online after an Azure VM is restarted for manually installed instances of SQL Server.

SQL Server on Azure VM deployment fails

When you try to deploy a SQL Server on Azure VM image from Azure Marketplace, the deployment fails with a status of Conflict and the following error:

System Drive returned status not ready for use.

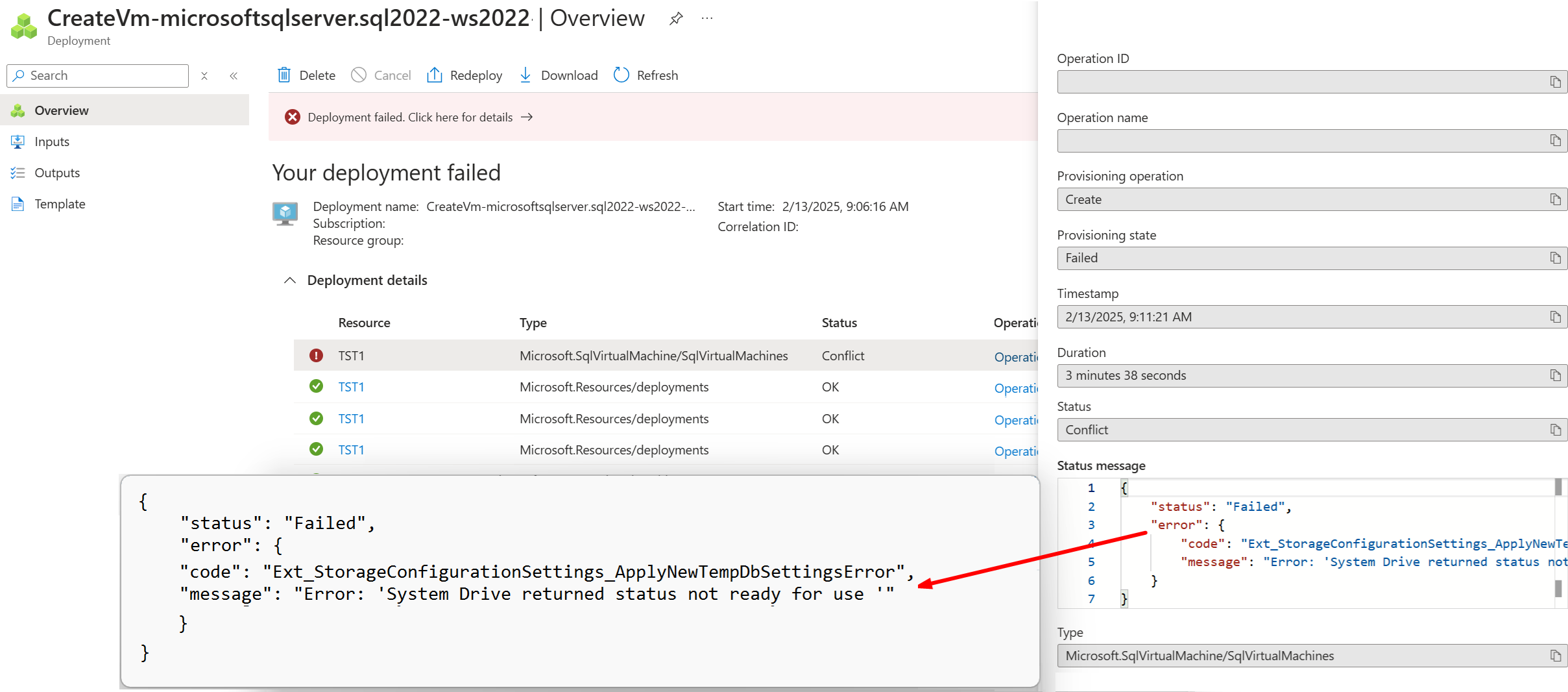

For example, if you're deploying an image from the Azure portal, you might see the following error for the deployment in Activity log:

SQL Server fails to come online after the VM is restarted

You might see this issue after following this sequence of events:

1. You deploy an Azure VM from the impacted VM list.
2. You manually install an instance of SQL Server to the Azure VM.
3. You configure your SQL Server tempdb database to use the local SSD ephemeral storage (typically, the D: drive).
4. Your VM is restarted or deallocated.
5. Your SQL Server instance fails to come online.

If you encounter this issue, you might see the following error in the SQL Server error log:

CREATE FILE encountered operating system error 3(The system cannot find the path specified.)
while attempting to open or create the physical file 'D:\SQLTemp\tempdb.mdf'.
Error: 17204, Severity: 16, State: 1. FCB::Open failed: Could not open
file D:\SQLTemp\tempdb.mdf for file number 1. OS error:
3(The system cannot find the path specified.).
Error: 5120, Severity: 16, State: 101.
Unable to open the physical file "D:\SQLTemp\tempdb.mdf". Operating system error 3:
"3(The system cannot find the path specified.)".
Error: 1802, Severity: 16, State: 4 CREATE DATABASE failed.
Some file names listed could not be created. Check related errors.
Could not create tempdb. You may not have enough disk space available.
Free additional disk space by deleting other files on the tempdb drive and then restart SQL Server.
Check for additional errors in the event log that may indicate why the
tempdb files could not be initialized.

Cause

Some of the newest Azure VM sizes present a RAW local SSD volume for ephemeral storage configured with the Non-Volatile Memory Express (NVMe) interface. This configuration results in failures because SQL Server attempts to place the tempdb database on the ephemeral storage and fails as the local SSD volume isn't available. Additionally, the ephemeral storage shows as RAW after the machine is deallocated.

The RAW local SSD volume causes the SQL VM deployment to fail, and prevents manually installed SQL Server instances from coming online after the VM is restarted. In both cases, SQL Server tries to initialize the tempdb database on the ephemeral storage, which isn't available. The deployment fails because SQL Server is installed during the deployment of the Azure VM, and the ephemeral storage isn't available. Likewise, manually installed instances of SQL Server fail to come online after the VM is restarted because the ephemeral storage isn't available when SQL Server tries to create the tempdb database.

Resolution

This issue occurs because of the selected Azure VM size. To solve the issue, use one of the following methods:

• If possible, use another VM SKU, such as the SKUs listed in the VM size best practices.
• If you want to use a particular VM that is on the impacted VMs list, use a machine without the lowercase d in the name, which places tempdb on the same storage as the SQL Server data files. For example, use the FXmsv2 VM size instead of FXmdsv2. The latter uses uninitialized ephemeral storage, as indicated by d in the name.

Workaround

If you can't use another VM SKU without a RAW local SSD, consider the following workarounds:

• Deploy the VM using a Windows Server-only image, format and initialize the temporary NVMe drive, and then manually install SQL Server.

  • If you choose to put tempdb on the local SSD, you must reinitialize the disk before starting SQL Server every time the VM is restarted or deallocated.

• Deploy the SQL Server VM image, but configure tempdb to use a different drive than the ephemeral storage during the deployment. For example, you can configure tempdb to use the C: drive or remote storage drive.

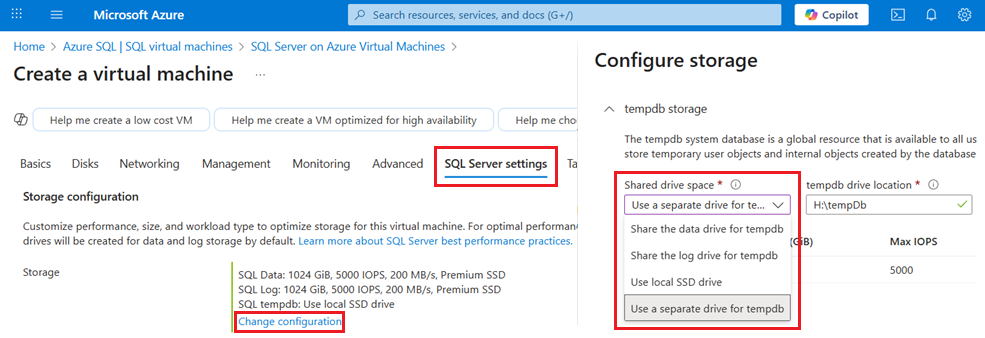

  1. You can configure this setting on the SQL Server settings page in the Azure portal when deploying the SQL Server VM image.

  2. Under Storage configuration, select Change configuration to open the Configure storage pane.

  3. Expand tempdb storage and choose any option other than Use local SSD drive:



Impacted VMs

This issue occurs with VMs that deploy an uninitialized temporary drive, such as the following VM sizes:
