SELECTs and JOINs From System Views for Extended Events

Applies to: SQL Server Azure SQL Database Azure SQL Managed Instance SQL database in Microsoft Fabric Preview

This article explains the two sets of system views that relate to Extended Events. The article illustrates:

• How to JOIN various system views.
• How to SELECT particular kinds of information from the system views.

There are two sets of system views for Extended Events:

Catalog views

• These views store information about the definition of each event session that is created by CREATE EVENT SESSION (Transact-SQL). But these views know nothing about whether any sessions have ever started running.
  • For example, if the SSMS Object Explorer shows no event sessions are defined, SELECTing from the view sys.server_event_session_targets would return zero rows.
• Most of the examples are written for SQL Server and Azure SQL Managed Instance. But with minor edits they would run on Azure SQL Database, and SQL database in Fabric by changing the server in the DMV name to database:
  • sys.server_event_session* is the name prefix on SQL Server and Azure SQL Managed Instance.
  • sys.database_event_session* is the name prefix on Azure SQL Database and SQL database in Fabric.
  • For more information on each, see Extended Events Catalog Views.

Dynamic management views (DMVs)

• Store information about the current activity of running event sessions. But these DMVs know little about the definition of the sessions.

  • Even if all event sessions are currently stopped, a SELECT from the view sys.dm_xe_packages still return rows because various packages are loaded into active memory a server start.
  • For the same reason, sys.dm_xe_objects and sys.dm_xe_object_columns still return rows.

• Name prefix for Extended Events DMVs is:

  • sys.dm_xe_* is the name prefix on SQL Server and Azure SQL Managed Instance.
  • sys.dm_xe_database_* is generally the name prefix on Azure SQL Database and SQL database in Fabric.

Permissions

To SELECT from the system views, the following permission is necessary:

• SQL Server 2019 (15.x) and previous versions require VIEW SERVER STATE permission on the server.
• SQL Server 2022 (16.x) and later versions require VIEW SERVER PERFORMANCE STATE permission on the server.
• Azure SQL Database and SQL database in Fabric require VIEW DATABASE PERFORMANCE STATE permission in the database.

Catalog views

For the purposes of this page, create an Extended Events session with SSMS or with T-SQL. Always use the latest update of SSMS.

Create session in SQL Server Management Studio (SSMS)

In SSMS, in its Object Explorer, you can start the New Session dialog by expanding Management > Extended Events, and then right-click Sessions > New Session.

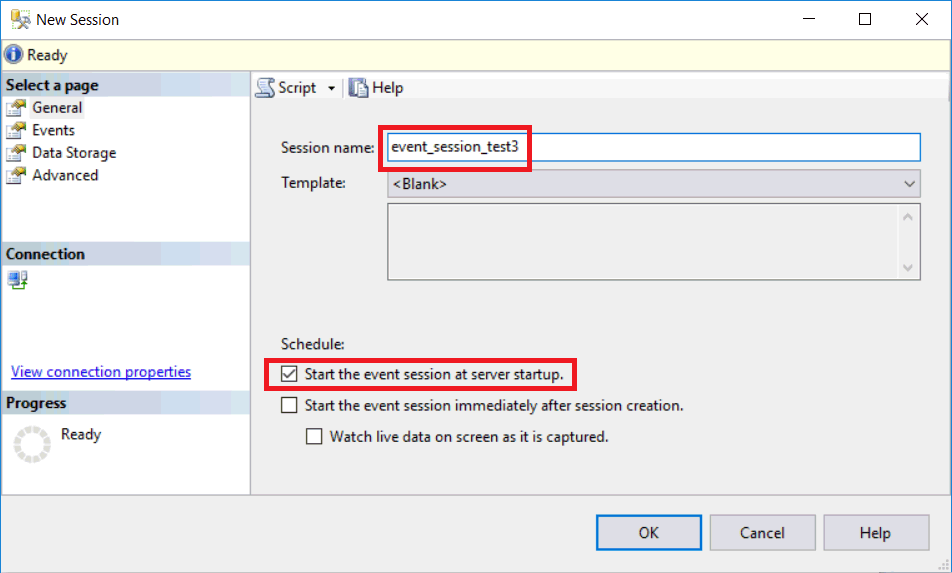

In the large New Session dialog, in its first section labeled General, we see the option has been selected to Start the event session at server startup.

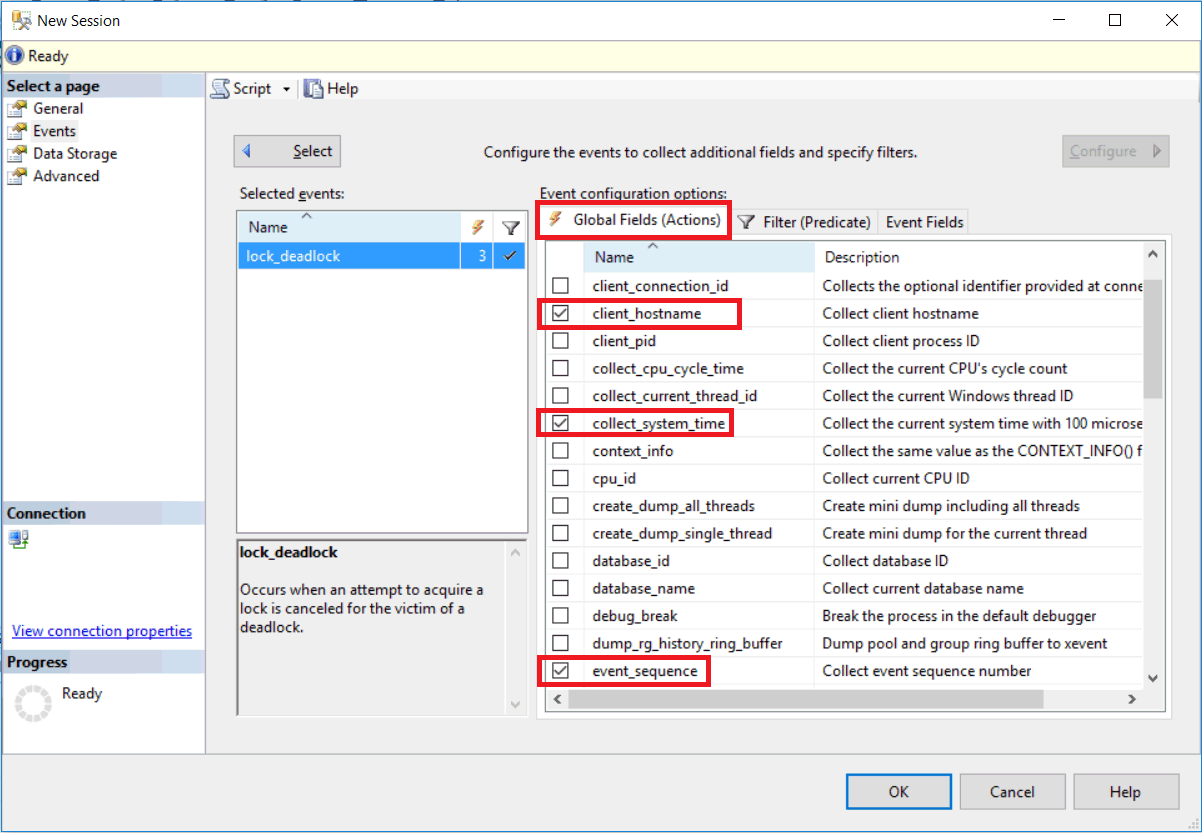

Next on the Events section, we see the lock_deadlock event was chosen. For that event, we see that three Actions have been selected. This means the Configure button was selected, which becomes gray after being selected.

Next, still on the Events > Configure section, we see that resource_type has been set to PAGE. This means that event data will not be sent from the event engine to the target if the resource_type value is anything other than PAGE.

We see additional predicate filters for the database name and for a counter.

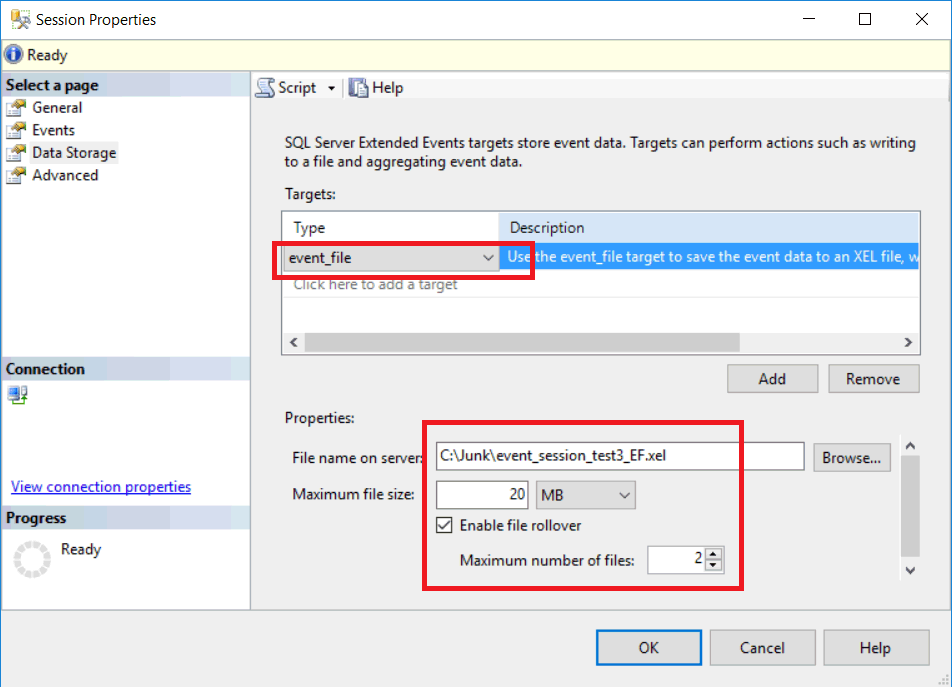

Next on the Data Storage section, we see the event_file has been chosen as a target. Further, we see that the Enable file roleover option has been selected.

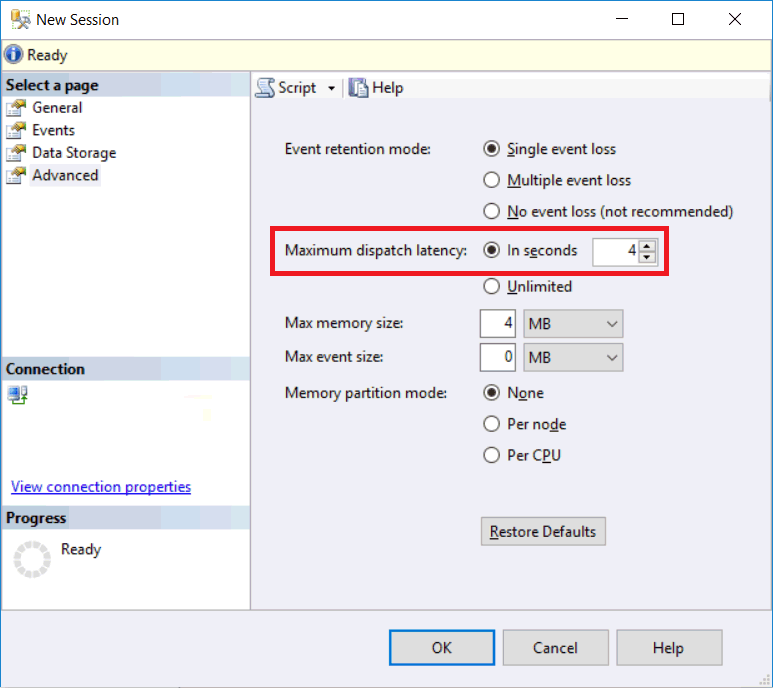

Finally, on the Advanced section, we see that the Maximum dispatch latency value was reduced down to 4 seconds.

Create event session in T-SQL

Regardless of how an event session definition is created, from SSMS the session can be reversed engineered into a perfectly matching Transact-SQL script. You can examine the preceding New Session screenshots and compare their visible specifications to the clauses in the following generated T-SQL CREATE EVENT SESSION script.

To reverse engineer an event session, in the Object Explorer you can right-click your session node, and then choose Script Session as > CREATE to** > Clipboard.

CREATE EVENT SESSION [event_session_test3]
    ON SERVER  -- Or, if on Azure SQL Database, ON DATABASE.

    ADD EVENT sqlserver.lock_deadlock
    (
        SET
            collect_database_name = (1)
        ACTION
        (
            package0.collect_system_time,
            package0.event_sequence,
            sqlserver.client_hostname
        )
        WHERE
        (
            [database_name]           = N'InMemTest2'
            AND [package0].[counter] <= (16)
            AND [resource_type]       = (6)
        )
    )

    ADD TARGET package0.event_file
    (
        SET
            filename           = N'c:\temp\\event_session_test3_EF.xel',
            max_file_size      = (20),
            max_rollover_files = (2)
    )

    WITH
    (
        MAX_MEMORY            = 4096 KB,
        EVENT_RETENTION_MODE  = ALLOW_SINGLE_EVENT_LOSS,
        MAX_DISPATCH_LATENCY  = 4 SECONDS,
        MAX_EVENT_SIZE        = 0 KB,
        MEMORY_PARTITION_MODE = NONE,
        TRACK_CAUSALITY       = OFF,
        STARTUP_STATE         = ON
    );

Catalog view SELECT JOIN UNION

The following T-SQL SELECT statement is long only because it UNIONs several small SELECTs together. Any of the small SELECTs can be run on its own. The small SELECTs show how the various system cataloging views should be JOINed together.

SELECT
        s.name        AS [Session-Name],
        '1_EVENT'     AS [Clause-Type],
        'Event-Name'  AS [Parameter-Name],
        e.name        AS [Parameter-Value]
    FROM
              sys.server_event_sessions         AS s
        JOIN  sys.server_event_session_events   AS e

            ON  e.event_session_id = s.event_session_id
    WHERE
        s.name = 'event_session_test3'

UNION ALL
SELECT
        s.name         AS [Session-Name],
        '2_EVENT_SET'  AS [Clause-Type],
        f.name         AS [Parameter-Name],
        f.value        AS [Parameter-Value]
    FROM
              sys.server_event_sessions         AS s
        JOIN  sys.server_event_session_events   AS e

            ON  e.event_session_id = s.event_session_id

        JOIN  sys.server_event_session_fields   As f

            ON  f.event_session_id = s.event_session_id
            AND f.object_id        = e.event_id
    WHERE
        s.name = 'event_session_test3'

UNION ALL
SELECT
        s.name              AS [Session-Name],
        '3_EVENT_ACTION'    AS [Clause-Type],

        a.package + '.' + a.name
                            AS [Parameter-Name],

        '(Not_Applicable)'  AS [Parameter-Value]
    FROM
              sys.server_event_sessions         AS s
        JOIN  sys.server_event_session_events   AS e

            ON  e.event_session_id = s.event_session_id

        JOIN  sys.server_event_session_actions  As a

            ON  a.event_session_id = s.event_session_id
            AND a.event_id         = e.event_id
    WHERE
        s.name = 'event_session_test3'

UNION ALL
SELECT
        s.name                AS [Session-Name],
        '4_EVENT_PREDICATES'  AS [Clause-Type],
        e.predicate           AS [Parameter-Name],
        '(Not_Applicable)'    AS [Parameter-Value]
    FROM
              sys.server_event_sessions         AS s
        JOIN  sys.server_event_session_events   AS e

            ON  e.event_session_id = s.event_session_id
    WHERE
        s.name = 'event_session_test3'

UNION ALL
SELECT
        s.name              AS [Session-Name],
        '5_TARGET'          AS [Clause-Type],
        t.name              AS [Parameter-Name],
        '(Not_Applicable)'  AS [Parameter-Value]
    FROM
              sys.server_event_sessions         AS s
        JOIN  sys.server_event_session_targets  AS t

            ON  t.event_session_id = s.event_session_id
    WHERE
        s.name = 'event_session_test3'

UNION ALL
SELECT
        s.name          AS [Session-Name],
        '6_TARGET_SET'  AS [Clause-Type],
        f.name          AS [Parameter-Name],
        f.value         AS [Parameter-Value]
    FROM
              sys.server_event_sessions         AS s
        JOIN  sys.server_event_session_targets  AS t

            ON  t.event_session_id = s.event_session_id

        JOIN  sys.server_event_session_fields   As f

            ON  f.event_session_id = s.event_session_id
            AND f.object_id        = t.target_id
    WHERE
        s.name = 'event_session_test3'

UNION ALL
SELECT
        s.name               AS [Session-Name],
        '7_WITH_MAX_MEMORY'  AS [Clause-Type],
        'max_memory'         AS [Parameter-Name],
        s.max_memory         AS [Parameter-Value]
    FROM
              sys.server_event_sessions  AS s
    WHERE
        s.name = 'event_session_test3'

UNION ALL
SELECT
        s.name                  AS [Session-Name],
        '7_WITH_STARTUP_STATE'  AS [Clause-Type],
        'startup_state'         AS [Parameter-Name],
        s.startup_state         AS [Parameter-Value]
    FROM
              sys.server_event_sessions  AS s
    WHERE
        s.name = 'event_session_test3'

ORDER BY
    [Session-Name],
    [Clause-Type],
    [Parameter-Name]
;

Output

The following table shows the output from running the preceding SELECT JOIN UNION. The output parameter names and values map to what is plainly visible in the preceding CREATE EVENT SESSION statement.

This completes the section on catalog views.

Dynamic management views (DMVs)

This section provides several Transact-SQL SELECT statements which each serve a specific useful business purpose. Further, the SELECTs demonstrate how you can JOIN the DMVs together for any new uses you want.

Reference documentation of the DMVs is available at Extended Events Dynamic Management Views

All the objects you can use in area of extended events come from packages which are loaded into the system. This section lists all the packages and their descriptions.

SELECT  --C.1
        p.name         AS [Package],
        p.description  AS [Package-Description]
    FROM
        sys.dm_xe_packages  AS p
    ORDER BY
        p.name;

Output

Here is the list of packages.

Definitions of the preceding initialisms:

• clr = Common Language Runtime of .NET
• qds = Query Data Store
• sni = Server Network Interface
• ucs = Unified Communications Stack
• xtp = Extreme Transaction Processing

SELECT all available items sorted by type

The following SELECT returns one row for each object.

SELECT  --C.3
        o.object_type  AS [Type-of-Item],
        p.name         AS [Package],
        o.name         AS [Item],
        o.description  AS [Item-Description]
    FROM
             sys.dm_xe_objects  AS o
        JOIN sys.dm_xe_packages AS p  ON o.package_guid = p.guid
    WHERE
        o.object_type IN ('action' , 'target' , 'pred_source')
        AND
        (
            (o.capabilities & 1) = 0
            OR
            o.capabilities IS NULL
        )
    ORDER BY
        [Type-of-Item],
        [Package],
        [Item];

Data fields available for your event

The following SELECT returns all the data fields that are particular to your event type.

• Note the WHERE clause item: column_type = 'data'.
• Also, you would need to edit the WHERE clause value for o.name =.

SELECT  -- C.4
        p.name         AS [Package],
        c.object_name  AS [Event],
        c.name         AS [Column-for-Predicate-Data],
        c.description  AS [Column-Description]
    FROM
              sys.dm_xe_object_columns  AS c
        JOIN  sys.dm_xe_objects         AS o

            ON  o.name = c.object_name

        JOIN  sys.dm_xe_packages        AS p

            ON  p.guid = o.package_guid
    WHERE
        c.column_type = 'data'
        AND
        o.object_type = 'event'
        AND
        o.name        = '\<EVENT-NAME-HERE!>'  --'lock_deadlock'
    ORDER BY
        [Package],
        [Event],
        [Column-for-Predicate-Data];

Output

The following rows were returned by the preceding SELECT, WHERE o.name = 'lock_deadlock':

• Each row represents an optional filter for the sqlserver.lock_deadlock event.
• The Column-Description column is omitted from the following display. Its value is often NULL.
• This is actual output, except for the omitted Description column which is often NULL.
• These rows are WHERE object_type = 'lock_deadlock'.

sys.dm_xe_map_values and event fields

The following SELECT includes a JOIN to the sys.dm_xe_map_values view.

The purpose of the SELECT display the numerous fields that you can choose from for your event session. The event fields can be used in two ways:

• To choose which field values will be written to your target for each event occurrence.
• To filter which event occurrences will be sent to versus kept from your target.

SELECT  --C.5
        dp.name         AS [Package],
        do.name         AS [Object],
        do.object_type  AS [Object-Type],
        'o--c'     AS [O--C],
        dc.name         AS [Column],
        dc.type_name    AS [Column-Type-Name],
        dc.column_type  AS [Column-Type],
        dc.column_value AS [Column-Value],
        'c--m'     AS [C--M],
        dm.map_value    AS [Map-Value],
        dm.map_key      AS [Map-Key]
    FROM      sys.dm_xe_objects         AS do
        JOIN  sys.dm_xe_object_columns  AS dc
            ON  dc.object_name = do.name
        JOIN  sys.dm_xe_map_values      AS dm
            ON  dm.name = dc.type_name
        JOIN  sys.dm_xe_packages        AS dp
            ON  dp.guid = do.package_guid
    WHERE
        do.object_type = 'event'
        AND
        do.name        = '\<YOUR-EVENT-NAME-HERE!>'  --'lock_deadlock'
    ORDER BY
        [Package],
        [Object],
        [Column],
        [Map-Value];

Output

Next is a sampling of the actual 100+ rows of output from the preceding T-SQL SELECT. The row for resource_type is relevant to the predicate filtering used in the event_session_test3 example elsewhere in this article.

/***  5 sampled rows from the actual rows returned.
    NOTE:  'resource_type' under 'Column'.

Package     Object          Object-Type   O--C   Column          Column-Type-Name     Column-Type   Column-Value   C--M   Map-Value        Map-Key
-------     ------          -----------   ----   ------          ----------------     -----------   ------------   ----   ---------        -------
sqlserver   lock_deadlock   event         o--c   CHANNEL         etw_channel          readonly      2              c--m   Operational      4
sqlserver   lock_deadlock   event         o--c   KEYWORD         keyword_map          readonly      16             c--m   access_methods   1024
sqlserver   lock_deadlock   event         o--c   mode            lock_mode            data          NULL           c--m   IX               8
sqlserver   lock_deadlock   event         o--c   owner_type      lock_owner_type      data          NULL           c--m   Cursor           2
sqlserver   lock_deadlock   event         o--c   resource_type   lock_resource_type   data          NULL           c--m   PAGE             6

Therefore, on your CREATE EVENT SESSION statement, in its ADD EVENT WHERE clause,
you could put:
    WHERE( ... resource_type = 6 ...)  -- Meaning:  6 = PAGE.
***/

Parameters for targets

The following SELECT returns every parameter for your target. Each parameter is tagged to indicate whether it is mandatory. The values you assign to parameters affect the behavior of the target.

• Note the WHERE clause item: object_type = 'customizable'.
• Also, you would need to edit the WHERE clause value for o.name = .

SELECT  --C.6
        p.name        AS [Package],
        o.name        AS [Target],
        c.name        AS [Parameter],
        c.type_name   AS [Parameter-Type],

        CASE c.capabilities_desc
            WHEN 'mandatory' THEN 'YES_Mandatory'
            ELSE 'Not_mandatory'
        END  AS [IsMandatoryYN],

        c.description AS [Parameter-Description]
    FROM
              sys.dm_xe_objects   AS o
        JOIN  sys.dm_xe_packages  AS p

            ON  o.package_guid = p.guid

        LEFT OUTER JOIN  sys.dm_xe_object_columns  AS c

            ON  o.name        = c.object_name
            AND c.column_type = 'customizable'  -- !
    WHERE
        o.object_type = 'target'
        AND
        o.name     LIKE '%'    -- Or '\<YOUR-TARGET-NAME-HERE!>'.
    ORDER BY
        [Package],
        [Target],
        [IsMandatoryYN]  DESC,
        [Parameter];

Output

The following rows of parameters are a small subset of those returned by the preceding SELECT.

/***  Actual output, all rows, where target name = 'event_file'.
Package    Target       Parameter            Parameter-Type       IsMandatoryYN   Parameter-Description
-------    ------       ---------            --------------       -------------   ---------------------
package0   event_file   filename             unicode_string_ptr   YES_Mandatory   Specifies the location and file name of the log
package0   event_file   increment            uint64               Not_mandatory   Size in MB to grow the file
package0   event_file   lazy_create_blob     boolean              Not_mandatory   Create blob upon publishing of first event buffer, not before.
package0   event_file   max_file_size        uint64               Not_mandatory   Maximum file size in MB
package0   event_file   max_rollover_files   uint32               Not_mandatory   Maximum number of files to retain
package0   event_file   metadatafile         unicode_string_ptr   Not_mandatory   Not used
***/

DMV SELECT casting target_data column to XML

This DMV SELECT returns data rows from the target of your active event session. The data is cast to XML, which makes its returned cell selectable for easy display in SSMS.

• If your event session is stopped, this SELECT will return zero rows.
• You would need to edit the WHERE clause value for s.name = .

SELECT  --C.7
        s.name,
        t.target_name,
        CAST(t.target_data AS XML)  AS [XML-Cast]
    FROM
              sys.dm_xe_session_targets  AS t
        JOIN  sys.dm_xe_sessions         AS s

            ON s.address = t.event_session_address
    WHERE
        s.name = '\<Your-Session-Name-Here!>';

Output, the only row, including its XML cell

Here is the only row that is output from the preceding SELECT. The column XML-Cast contains a string of XML that SSMS understands is XML. Therefore SSMS understands it should make the XML-Cast cell selectable.

For this run:

• The s.name = value was set to an event session for the checkpoint_begin event.
• The target was a ring_buffer.

name                              target_name   XML-Cast
----                              -----------   --------
checkpoint_session_ring_buffer2   ring_buffer   <RingBufferTarget truncated="0" processingTime="0" totalEventsProcessed="2" eventCount="2" droppedCount="0" memoryUsed="104"><event name="checkpoint_begin" package="sqlserver" timestamp="2016-07-09T01:28:23.508Z"><data name="database_id"><type name="uint32" package="package0" /><value>5</value></data></event><event name="checkpoint_begin" package="sqlserver" timestamp="2016-07-09T01:28:26.975Z"><data name="database_id"><type name="uint32" package="package0" /><value>5</value></data></event></RingBufferTarget>

Output, XML displayed pretty when cell is selected

When the XML-Cast cell is selected, the following pretty display appears.

<RingBufferTarget truncated="0" processingTime="0" totalEventsProcessed="2" eventCount="2" droppedCount="0" memoryUsed="104">
  <event name="checkpoint_begin" package="sqlserver" timestamp="2016-07-09T01:28:23.508Z">
    <data name="database_id">
      <type name="uint32" package="package0" />
      <value>5</value>
    </data>
  </event>
  <event name="checkpoint_begin" package="sqlserver" timestamp="2016-07-09T01:28:26.975Z">
    <data name="database_id">
      <type name="uint32" package="package0" />
      <value>5</value>
    </data>
  </event>
</RingBufferTarget>

SELECT from a function to retrieve event_file data from disk drive

Suppose your event session gathered some data and later was stopped. If your session was defined to use the event_file target, you could still retrieve the data by calling the function sys.fn_xe_target_read_file.

• You must edit your path and file name into the parameter of the function call, before you run this SELECT.
  • Pay no attention to the extra digits that SQL system embeds into your actual .XEL file names each time you restart your session. Just give the normal root name and extension.

SELECT  --C.8
        f.module_guid,
        f.package_guid,
        f.object_name,
        f.file_name,
        f.file_offset,
        CAST(f.event_data AS XML)  AS [Event-Data-As-XML]
    FROM
        sys.fn_xe_file_target_read_file(

            '\<YOUR-PATH-FILE-NAME-ROOT-HERE!>*.xel',
            --'c:\temp\\Checkpoint_Begins_ES*.xel',  -- Example.

            NULL, NULL, NULL
        )  AS f;

Output, rows returned by SELECT FROM the function

Next are the rows returned by the preceding SELECT FROM the function. The Event-Data-As-XML XML column contains the data that is specifically about the event occurrence.

module_guid                            package_guid                           object_name        file_name                                                           file_offset   Event-Data-As-XML
-----------                            ------------                           -----------        ---------                                                           -----------   -----------------
D5149520-6282-11DE-8A39-0800200C9A66   03FDA7D0-91BA-45F8-9875-8B6DD0B8E9F2   checkpoint_begin   c:\temp\\Checkpoint_Begins_ES_20160615bb-_0_131125086091700000.xel   5120          <event name="checkpoint_begin" package="sqlserver" timestamp="2016-07-09T03:30:14.023Z"><data name="database_id"><value>5</value></data><action name="session_id" package="sqlserver"><value>60</value></action><action name="database_id" package="sqlserver"><value>5</value></action></event>
D5149520-6282-11DE-8A39-0800200C9A66   03FDA7D0-91BA-45F8-9875-8B6DD0B8E9F2   checkpoint_end     c:\temp\\Checkpoint_Begins_ES_20160615bb-_0_131125086091700000.xel   5120          <event name="checkpoint_end" package="sqlserver" timestamp="2016-07-09T03:30:14.025Z"><data name="database_id"><value>5</value></data></event>
D5149520-6282-11DE-8A39-0800200C9A66   03FDA7D0-91BA-45F8-9875-8B6DD0B8E9F2   checkpoint_begin   c:\temp\\Checkpoint_Begins_ES_20160615bb-_0_131125086091700000.xel   5632          <event name="checkpoint_begin" package="sqlserver" timestamp="2016-07-09T03:30:17.704Z"><data name="database_id"><value>5</value></data><action name="session_id" package="sqlserver"><value>60</value></action><action name="database_id" package="sqlserver"><value>5</value></action></event>
D5149520-6282-11DE-8A39-0800200C9A66   03FDA7D0-91BA-45F8-9875-8B6DD0B8E9F2   checkpoint_end     c:\temp\\Checkpoint_Begins_ES_20160615bb-_0_131125086091700000.xel   5632          <event name="checkpoint_end" package="sqlserver" timestamp="2016-07-09T03:30:17.709Z"><data name="database_id"><value>5</value></data></event>

Output, one XML cell

Here is the contents of the first XML cell, from the preceding returned rowset.

<event name="checkpoint_begin" package="sqlserver" timestamp="2016-07-09T03:30:14.023Z">
  <data name="database_id">
    <value>5</value>
  </data>
  <action name="session_id" package="sqlserver">
    <value>60</value>
  </action>
  <action name="database_id" package="sqlserver">
    <value>5</value>
  </action>
</event>

Related content

• Extended Events Catalog Views (Transact-SQL)
