Create a Xamarin.Forms Shell application

The process for creating a Xamarin.Forms Shell application is as follows:

1. Create a new Xamarin.Forms application, or load an existing application that you want to convert to a Shell application.
2. Add a XAML file to the shared code project, that subclasses the Shell class. For more information, see Subclass the Shell class.
3. Set the MainPage property of the application's App class to the subclassed Shell object. For more information, see Bootstrap the Shell application.
4. Describe the visual hierarchy of the application in the subclassed Shell class. For more information, see Describe the visual hierarchy of the application.

For a step-by-step walkthrough of how to create a Shell application, see Create a Xamarin.Forms application quickstart.

Subclass the Shell class

The first step in creating a Xamarin.Forms Shell application is to add a XAML file to the shared code project that subclasses the Shell class. This file can be named anything, but AppShell is recommended. The following code example shows a newly created AppShell.xaml file:

<Shell xmlns="http://xamarin.com/schemas/2014/forms"
       xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
       x:Class="MyApp.AppShell">

</Shell>

The following example shows the code-behind file, AppShell.xaml.cs:

using Xamarin.Forms;

namespace MyApp
{
    public partial class AppShell : Shell
    {
        public AppShell()
        {
            InitializeComponent();
        }
    }
}

Bootstrap the Shell application

After creating the XAML file that subclasses the Shell object, the MainPage property of the App class should be set to the subclassed Shell object:

namespace MyApp
{
    public partial class App : Application
    {
        public App()
        {
            InitializeComponent();
            MainPage = new AppShell();
        }
        ...
    }
}

In this example, the AppShell class is the XAML file that derives from the Shell class.

Describe the visual hierarchy of the application

The final step in creating a Xamarin.Forms Shell application is to describe the visual hierarchy of the application, in the subclassed Shell class. A subclassed Shell class consists of three main hierarchical objects:

1. FlyoutItem or TabBar. A FlyoutItem represents one or more items in the flyout, and should be used when the navigation pattern for the application requires a flyout. A TabBar represents the bottom tab bar, and should be used when the navigation pattern for the application begins with bottom tabs and doesn't require a flyout. Every FlyoutItem object or TabBar object is a child of the Shell object.
2. Tab, which represents grouped content, navigable by bottom tabs. Every Tab object is a child of a FlyoutItem object or TabBar object.
3. ShellContent, which represents the ContentPage objects for each tab. Every ShellContent object is a child of a Tab object. When more than one ShellContent object is present in a Tab, the objects will be navigable by top tabs.

These objects don't represent any user interface, but rather the organization of the application's visual hierarchy. Shell will take these objects and produce the navigation user interface for the content.

The following XAML shows an example of a subclassed Shell class:

<Shell xmlns="http://xamarin.com/schemas/2014/forms"
       xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
       xmlns:views="clr-namespace:Xaminals.Views"
       x:Class="Xaminals.AppShell">
    ...
    <FlyoutItem FlyoutDisplayOptions="AsMultipleItems">
        <Tab Title="Domestic"
             Icon="paw.png">
            <ShellContent Title="Cats"
                          Icon="cat.png"
                          ContentTemplate="{DataTemplate views:CatsPage}" />
            <ShellContent Title="Dogs"
                          Icon="dog.png"
                          ContentTemplate="{DataTemplate views:DogsPage}" />
        </Tab>
        <!--
        Shell has implicit conversion operators that enable the Shell visual hierarchy to be simplified.
        This is possible because a subclassed Shell object can only ever contain a FlyoutItem object or a TabBar object,
        which can only ever contain Tab objects, which can only ever contain ShellContent objects.

        The implicit conversion automatically wraps the ShellContent objects below in Tab objects.
        -->
        <ShellContent Title="Monkeys"
                      Icon="monkey.png"
                      ContentTemplate="{DataTemplate views:MonkeysPage}" />
        <ShellContent Title="Elephants"
                      Icon="elephant.png"
                      ContentTemplate="{DataTemplate views:ElephantsPage}" />
        <ShellContent Title="Bears"
                      Icon="bear.png"
                      ContentTemplate="{DataTemplate views:BearsPage}" />
    </FlyoutItem>
    ...
</Shell>

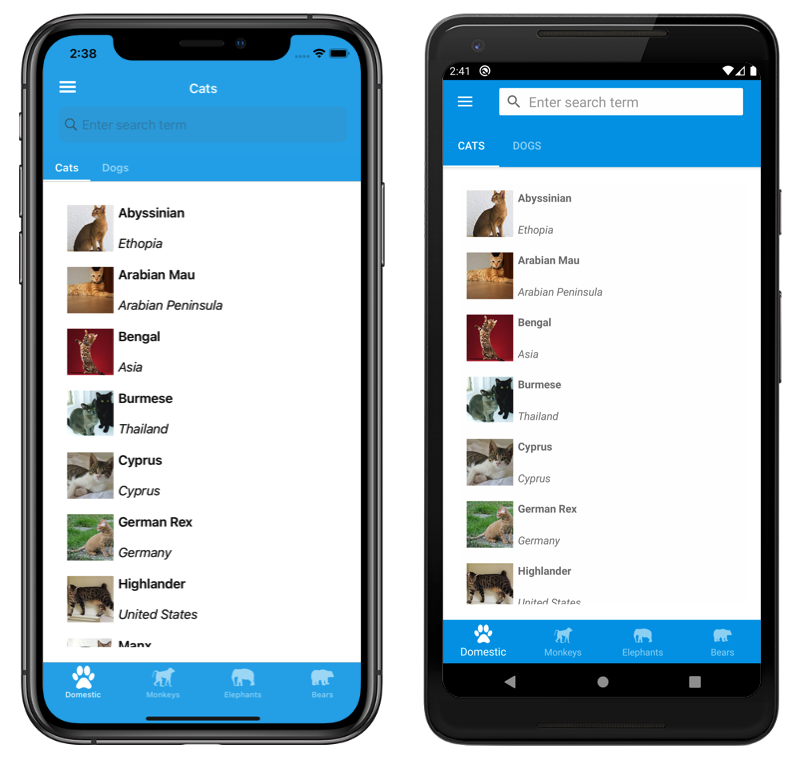

When run, this XAML displays the CatsPage, because it's the first item of content declared in the subclassed Shell class:

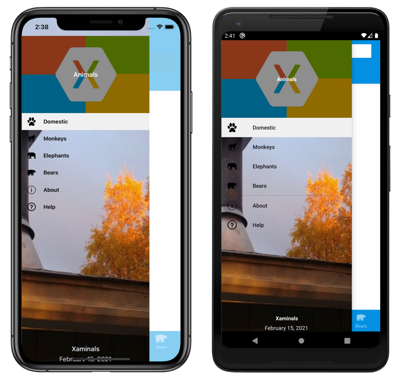

Pressing the hamburger icon, or swiping from the left, displays the flyout:

Multiple items are displayed on the flyout because the FlyoutDisplayOptions property is set to AsMultipleItems. For more information, see Flyout display options.
