Table storage mode in Power BI semantic models

In Power BI semantic models, the storage mode of a table depends on its data source. You can use the storage mode to control whether Power BI stores the table data in memory for reports or retrieves the data from the data source when visuals load.

This article introduces you to the various table storage modes and describes how they affect report behavior.

Table storage modes

A composite semantic model is a semantic model with tables in more than one storage mode. For more information, see Use composite models in Power BI.

See the storage mode of a table

Each table has a Storage mode property. To see the storage mode of a table, take the following steps:

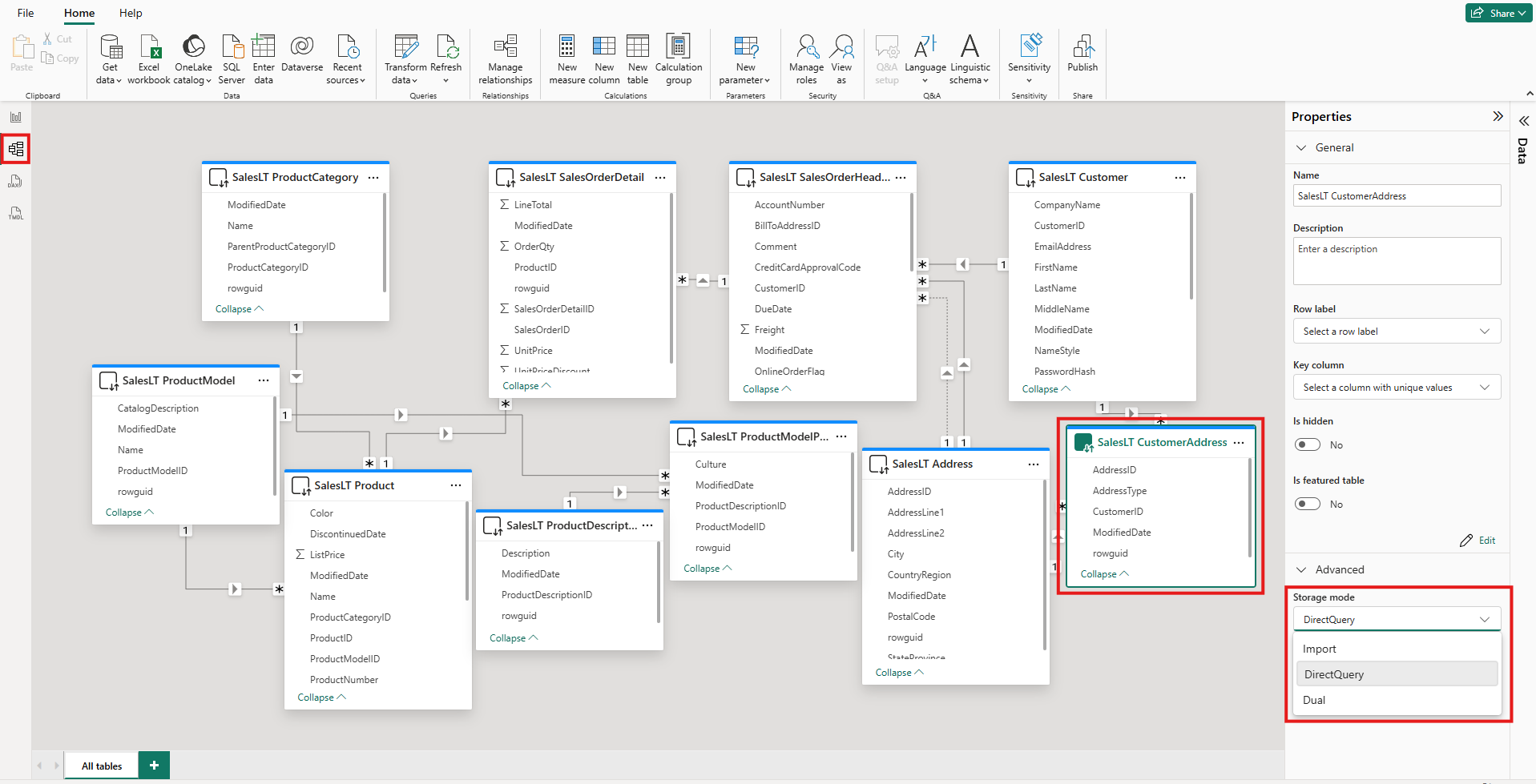

1. In Model view, select the table.

2. In the Properties pane, expand the Advanced section, and then expand the Storage mode list.



For most tables, you can set the storage mode only when you add the table. You can change the storage mode only if the table is in DirectQuery mode or Direct Lake on OneLake mode when created:

• You can change a DirectQuery table to an Import or Dual table. After you set this property, you can't set the mode back to DirectQuery. Exceptions are Power BI web modeling and live editing in Power BI Desktop. These environments both have version control, which you can use to reverse a changed storage mode.
• You can convert Direct Lake on OneLake tables to Import tables by using semantic link labs in Fabric notebooks.

Constraints on DirectQuery and Dual tables

Dual tables have the same functional constraints as DirectQuery tables. These constraints include limited M transformations and restricted DAX functions in calculated columns. For more information, see DirectQuery limitations.

Propagation of the Dual setting

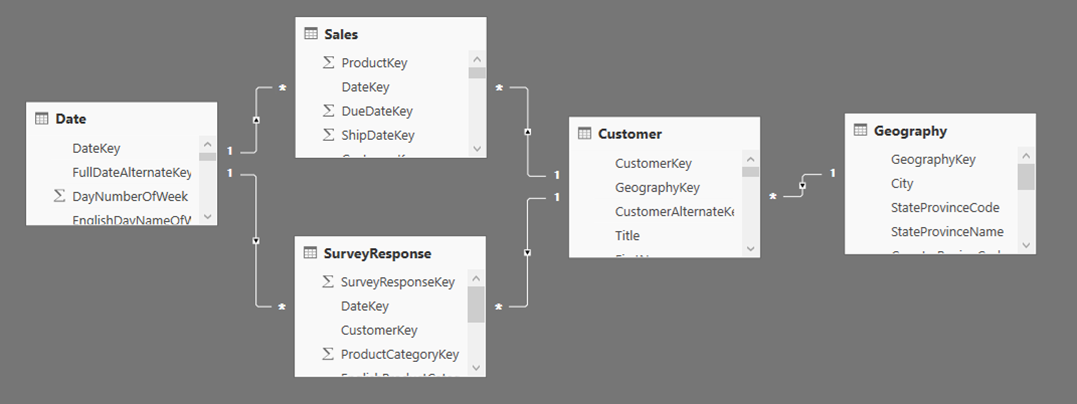

Consider the following model. All the tables are from a single source that supports Import and DirectQuery modes.

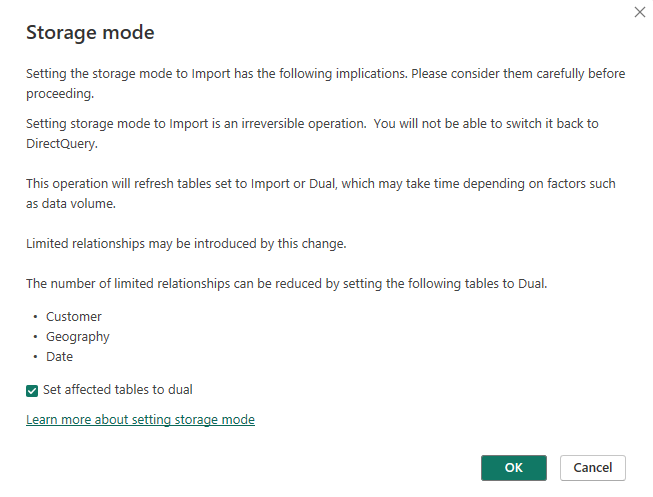

Suppose all tables in this model are initially set to DirectQuery. If you change the storage mode of the SurveyResponse table to Import, the following warning window is displayed:

You can set the dimension tables, Customer, Geography, and Date, to Dual mode to reduce the number of limited relationships in the semantic model, and help improve performance. Limited relationships normally involve at least one DirectQuery table where JOIN logic can't be pushed to the source systems. Because Dual tables can act as either DirectQuery or Import tables, this situation is avoided.

The propagation logic is designed to help with models that contain many tables. Suppose you have a model with 50 tables and only certain fact (transactional) tables need to be cached. The logic in Power BI Desktop calculates the minimum set of dimension tables that must be set to Dual mode, so you don't have to.

The propagation logic traverses only to the one side of one-to-many relationships.

Storage mode usage example

Consider an example that involves the following tables and storage modes:

The use of these storage modes results in the following behavior, assuming that the Sales table has significant data volume:

• Power BI Desktop caches the dimension tables, Date, Customer, and Geography, to help reduce the load times of initial reports when they retrieve slicer values to display.

• Power BI Desktop doesn't cache the Sales table.

  • Not caching this table helps to improve data-refresh times and to reduce memory consumption.
  • Report queries that are based on the Sales table run in DirectQuery mode. These queries can take longer than Import queries. But the results of DirectQuery queries are closer to real-time results, because no caching latency is introduced.

• Report queries that are based on the SurveyResponse table are relatively fast, because they're returned from the in-memory cache.

Queries that hit or miss the cache

You can use SQL Server Profiler to see which queries hit or miss the in-memory cache. If you connect this tool to the diagnostics port for Power BI Desktop, you can perform a trace that's based on the following events:

• Queries Events\Query Begin
• Query Processing\Vertipaq SE Query Begin
• Query Processing\DirectQuery Begin

For each Query Begin event, check other events with the same ActivityID value. For example, if there isn't a DirectQuery Begin event, but there's a Vertipaq SE Query Begin event, the query is answered from the cache.

Queries that refer to Dual tables return data from the cache, if possible. Otherwise, they revert to DirectQuery mode.

Consider a few DAX queries that refer to the tables in the previous section. For instance, the following query refers only to a column from the Date table, which is in Dual mode. Therefore, the query should hit the cache:

The following query refers only to a column from the Sales table, which is in DirectQuery mode. Therefore, it shouldn't hit the cache:

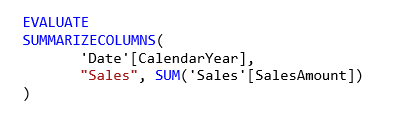

The following query is interesting because it combines both columns. This query doesn't hit the cache. You might initially expect it to retrieve CalendarYear values from the cache and SalesAmount values from the source and then combine the results. But this approach is less efficient than submitting a SUM or GROUP BY operation to the source system. If the source performs the operation, only the sum of the sales for each year is returned. That result likely contains far fewer rows than if all SalesAmount values are returned.

Keep caches in sync

The queries in the previous section show that Dual tables sometimes hit the cache and sometimes don't. As a result, the values that are returned from an out-of-date cache can differ from values returned from the source. Query execution doesn't attempt to mask data issues, for example, by filtering DirectQuery results to match cached values. It's your responsibility to know your data flows, and you should design accordingly. There are established techniques to handle such cases at the source, if necessary.

The Dual storage mode is a performance optimization. You should use it only in ways that don't compromise the ability to meet business requirements. For alternative behavior, consider using the techniques described in Understand many-to-many relationships in Power BI Desktop.

Table view

If at least one table in the semantic model has a storage mode of either Import or Dual, the Power BI Table view tab is available.

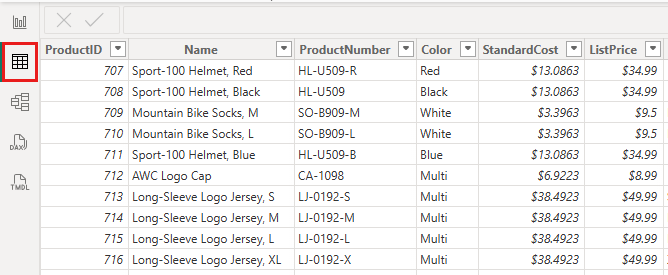

When you select a Dual or Import table in Table view, its cached data is displayed. No data is displayed for DirectQuery tables. Instead, a message appears that states that DirectQuery tables can't be shown.

Considerations and limitations

A few limitations currently exist for table storage modes and the use of certain modes in composite models:

The following live connection (multi-dimensional) sources can't be used with composite models:

• SAP HANA
• SAP Business Warehouse

When you connect to those multi-dimensional sources by using DirectQuery mode, you can't connect to another DirectQuery source or combine it with imported data.

The limitations of using DirectQuery mode still apply when you use composite models. Many of those limitations apply at the table level and depend on the storage mode of the table. For example, a calculated column on an imported table can refer to other tables, but a calculated column on a DirectQuery table can refer only to columns on the same table. Other limitations apply to the model as a whole, if any of the tables within the model are in DirectQuery mode.
