Work with DAX query view

Use DAX query view in Power BI to view and work with Data Analysis Expressions (DAX) queries on semantic models.

DAX queries

In Power BI, DAX formulas define different types of calculations for your data and also set up role security. DAX queries return data from the model.

DAX queries are similar to SQL queries because they show you data you already have. DAX queries don't create items in the model or visuals in the report.

DAX queries have two main parts:

  • An EVALUATE statement, which is required. It specifies what data the query returns and how it's returned.
  • A DEFINE statement, which is optional. It lets you define DAX formulas, like a measure, to use in the query. Measures created or updated using the DAX query DEFINE MEASURE are DAX query scoped measures, running only in the context of the DAX query. You can add DAX query scoped measures to the model using CodeLens update model actions or the Update model with changes button.

Learn more about how queries work in DAX queries in the DAX reference.

Open DAX query view

In Power BI Desktop, select the DAX Query View icon on the left side.

Screenshot of the DAX query view icon in Power BI Desktop.

In the Power BI service or Fabric portal workspace, select Write DAX queries from the context menu.

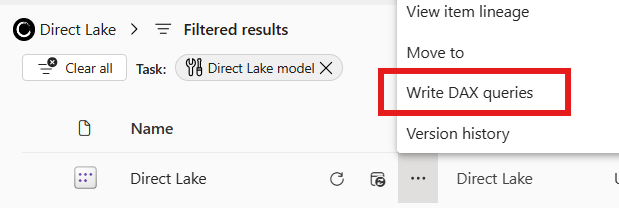

Screenshot of the Write DAX queries entry point in the context menu of a semantic model.

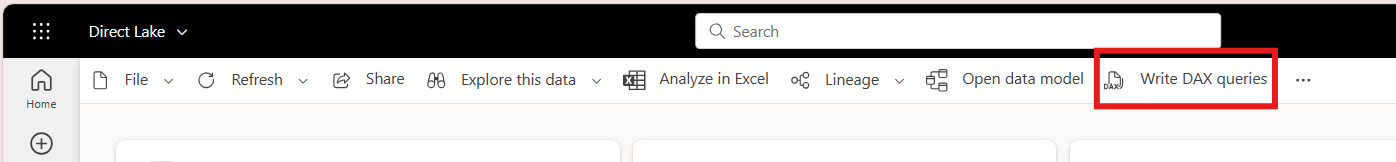

In the Power BI service or Fabric portal semantic model details page, select Write DAX queries at the top of the page.

Screenshot of the Write DAX queries entry point in the details page of semantic model.

DAX query view layout

Let's take a closer look at DAX query view in Power BI Desktop.

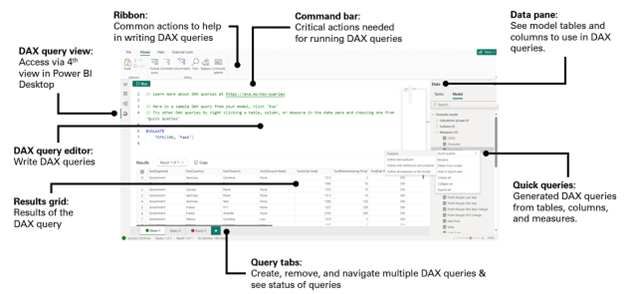

Diagram that shows the DAX query view layout.

DAX query view has these elements:

Ribbon

The DAX query view ribbon has common actions used when writing DAX queries.

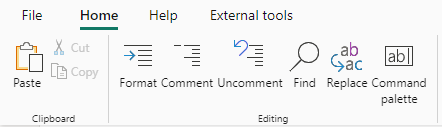

Screenshot of the DAX query view ribbon.

Let's take a closer look at elements in the ribbon:

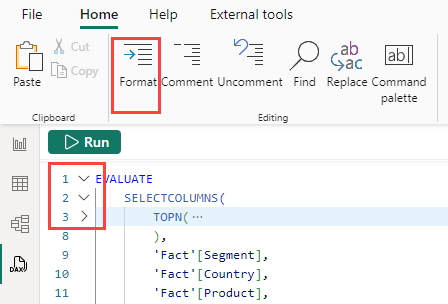

Format

Select the Format ribbon button or use SHIFT+ALT+F to format the current query. The query is indented with tabs. DAX functions are changed to UPPERCASE, and extra lines are added. Formatting your DAX query is considered to be a best practice and improves the DAX query readability. The formatting also indents in such a way that you can collapse and expand sections of the query.

Screenshot of the Format button.

Comment and Uncomment

Select the Comment ribbon button to add a double backslash (//) to the beginning of the line where the cursor is or all the selected lines. This action comments out the lines. When the DAX query is run, those lines are ignored.

Select the Uncomment ribbon button to remove // at the beginning of any line where the cursor is or all the selected lines. It doesn't work on lines where multiple line comment notation is added.

You can also use CTRL+/ to toggle between comment and uncomment.

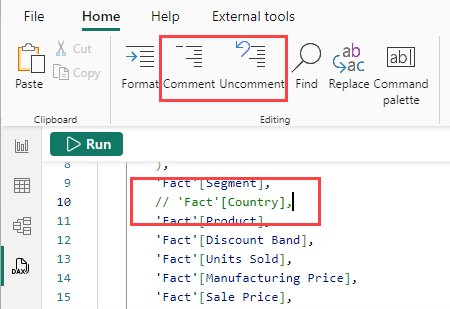

Screenshot of the Comment and Uncomment buttons in the DAX query view ribbon.

Find and Replace

Select the Find ribbon button or use CTRL+F to search for text in the DAX query editor. Find includes options to match case, match whole word, use a regular expression, and cycle through all matches for the current query. You can also select the chevron to the left of the Find box to enter Replace.

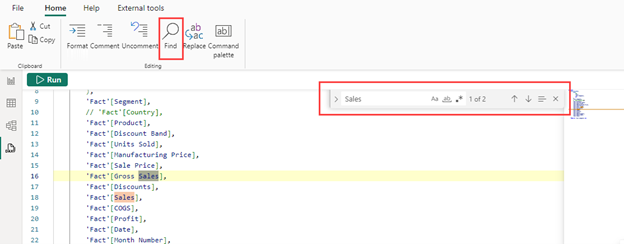

Screenshot of the find button in the DAX query view ribbon.

Select the Replace button in the ribbon or use CTRL+H to search for and replace text in the DAX query editor. Replace includes options to preserve the case and replace one at a time or all at once.

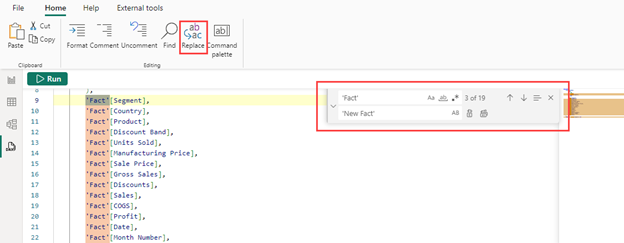

Screenshot of the Replace capability in the DAX query view ribbon.

Command palette

Select the Command palette ribbon button or use CTRL+ALT+P to open the command palette box. You can search for more DAX query editor actions and see their associated keyboard shortcuts.

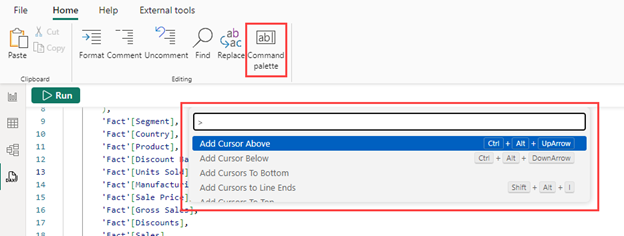

Screenshot of the DAX query view command palette.

Command bar

The DAX query view command bar includes the most important actions when using DAX query view.

Run and cancel

The Run button executes the DAX query or the selected lines of a query. The status of a query after it runs appears in the lower status bar.

Screenshot of the DAX query view command bar.

When a query is running, the button becomes a Cancel button, which can be used to stop a running query.

Screenshot of the DAX query view cancel.

Update model with changes

The Update model with changes button adds or overwrites model measures with the DAX formulas from the DAX query scoped measures. DAX query scoped measures are DAX formulas in the DEFINE MEASURE block. Alternatively, you can choose to add or overwrite model measures individually using the CodeLens text that appears above each one.

DAX query editor

DAX query view includes a query editor where you can write and edit queries. It's more than just a bigger DAX formula bar. It's more powerful and has many similarities to the DAX editor available in Visual Studio Code.

DAX query editor has the following elements:

Suggestions and Intellisense

Type in your query and get help with suggestions and Intellisense while editing.

Screenshot of the DAX query editor intellisense.

Use ENTER or TAB to add the highlighted intellisense, or SHIFT+ENTER or ALT+ENTER to move to another line without adding the intellisense option. Selecting ESC closes any of the overlays.

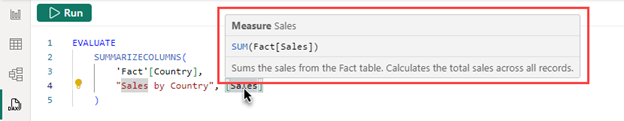

Hover to see measure formulas

When a measure is included in the DAX query, you can hover on it to see the formula, name, and description.

Screenshot of the hover to see measure formula feature.

Select to see measure light bulb quick actions

Selecting on a measure in an EVALUATE statement in a query without a DEFINE statement shows the quick actions light bulb. Select Define or Define with references to create a DEFINE statement with this measure’s formula with or without the reference measure DAX formulas.

Update model measures using CodeLens

Using DEFINE MEASURE is helpful when creating measures by first allowing you to create them as DAX query scoped measures. You can edit multiple measures in one window, and then run the query to see the results of all or just some of them with specific group by columns. You don't need to create a table visual in Report view and switch back and forth between measure formulas. CodeLens takes this one step further by providing prompts when the measure already exists in the model. These offer quick links to add the measure or overwrite the measure in the model.

CodeLens is the clickable text that shows above a DEFINE MEASURE block. For DAX query scoped measures that aren't already present in the model, the Update model: Add new measure CodeLens appears, which adds the model measure when clicked. For DAX query scoped measures that are already present in the model, and when the DAX scoped measure DAX formula is different, the Update model: Overwrite measure CodeLens appears. This changes the model measure to this DAX formula when clicked.

Alternatively, you can add or overwrite multiple measures at once by clicking the Update model with changes button in the Command bar.

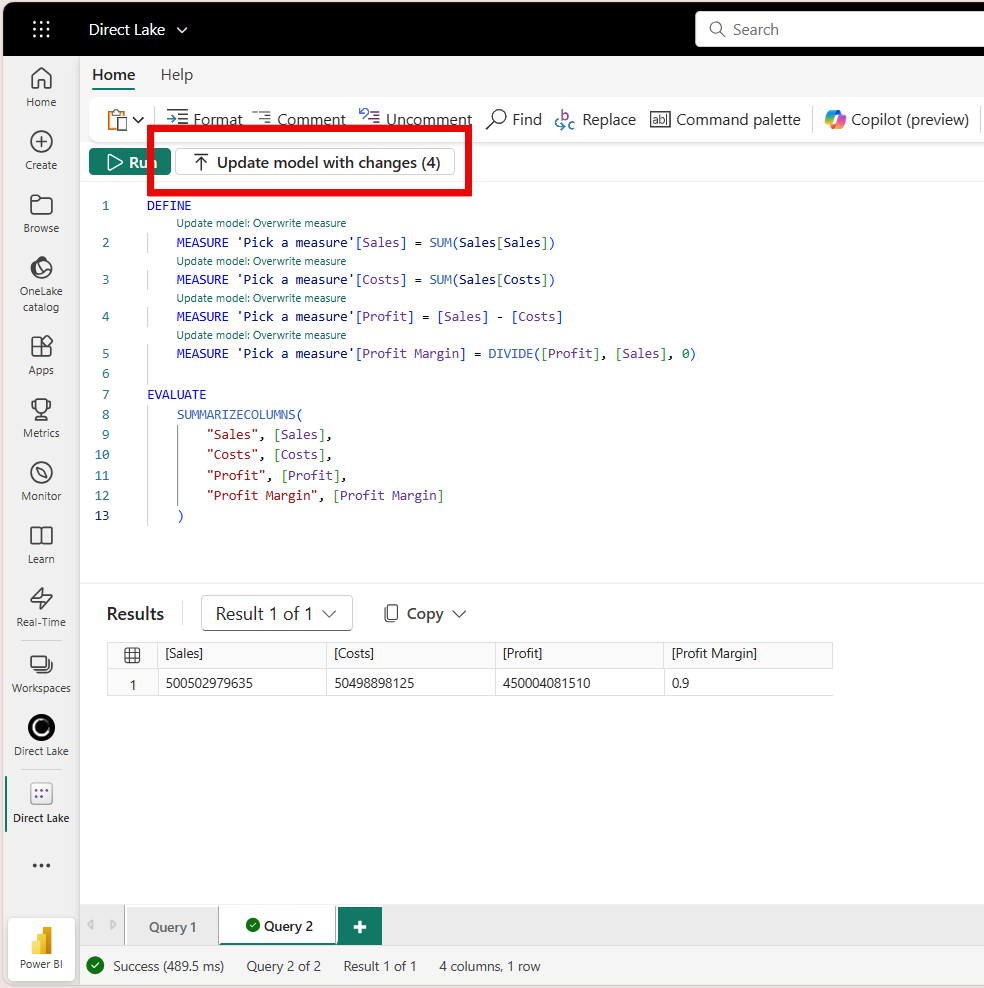

Screenshot of the Update model with changes button available in DAX query view.

Measure update workflow

The light bulb quick actions and CodeLens can be used together in a complete workflow:

  1. In the context menu of a measure, choose Quick queries, and then Evaluate to have the query created for you in a new Query tab.
  2. Select the measure in the query to Define or Define with references, adding the DEFINE statement.
  3. Make DAX formula updates to the measure, and then run the DAX query to see the results.
  4. When the change appears as expected, use the CodeLens Update model: Overwrite measure to save it back to the model.

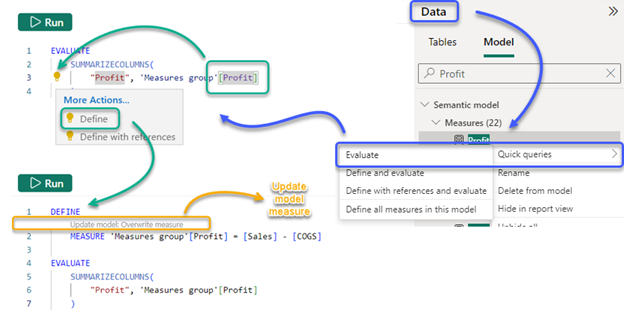

Here's a more visual way to understand the workflow:

Diagram of the workflow.

Results grid

When a query is run, the results are shown in the Results grid.

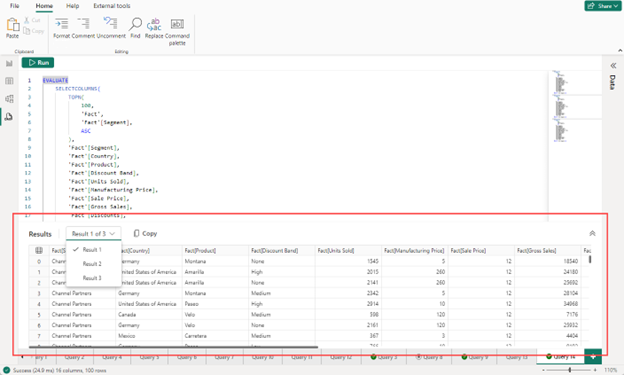

Screenshot of the results grid.

If there's more than one EVALUATE statement in the query editor, then multiple results can be returned. You can use the Result dropdown to switch between them. The Copy button copies the entire grid as a tab delimited table with headers. Resize the grid by dragging the upper right hand corner arrows or the border between the result grid and the query editor.

If the query results in an error, the results grid shows it.

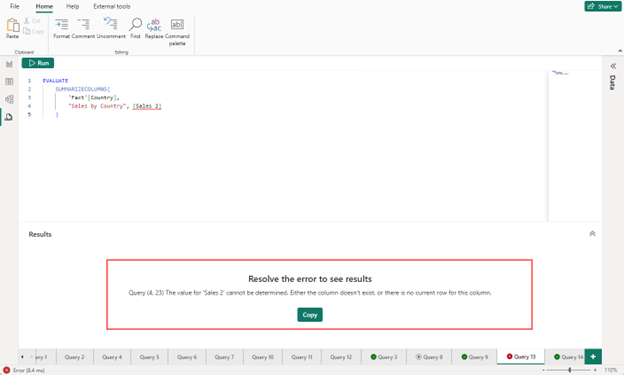

Screenshot of the error message in the results grid.

A copy button transfers the error to your clipboard. The beginning of the error indicates where in the query the error is. In the image above the error is: Query (4, 23) The value for 'Sales 2' can't be determined. Either the column doesn't exist, or there is no current row for this column.

And "Query (4, 23)" indicates the error is on line 4 and at character 23.

Query tabs

DAX query view can have multiple query tabs, which can be renamed or removed. They also show the current state of the query.

Screenshot of the Query tabs.

Each tab includes a status indicator:

  • No indicator shows before running the query.
  • A green checkmark indicates a successful query run.
  • A red cross indicates an error occurred.
  • A filled square in a circle indicates the query was canceled.
  • A clock indicates the query is running.

Queries can run in the background allowing you to continue working on other query tabs.

Saving of DAX queries

DAX query view query tabs are saved in the file when you save from Power BI Desktop, so you can continue where you left off when you open the file again. If you use the developer mode to save a Power BI project, each query tab is included as a .dax file in the DAXQueries folder of the semantic model folder, or report folder if they're created in a live connected report. Learn more at the Power BI developer mode documentation.

Currently, you can't view or edit the DAX queries previously added in Power BI Desktop in the Power BI service. Viewers of the report or semantic model don't see the DAX queries saved with the semantic model.

DAX query view tabs are discarded on close when you Write DAX queries from the Power BI service or Fabric portal.

Data pane

The Data pane shows the items in the model to help you write queries. The editing paths for most of these items is blocked in the query view.

Quick queries

The Data pane context menu includes Quick queries. Use quick queries to create queries in a new query tab for tables, columns, and measures. Quick queries are designed to be a productivity boost for common tasks and built so they can easily be further modified. All quick queries are created in a new query tab and are run automatically.

Anywhere

  • Define all measures in the model creates a query with all the measure formulas shown in a query. Easily search all your measure formulas.

  • Define new measure creates a query with a define measure block. Use this to create your own measure in DAX query view then add to your model when you're ready.

Tables

  • Show top 100 rows creates a query by using SELECTCOLUMNS() to show the top 100 rows of the table. The columns are listed on each line to allow for easy modification by commenting out lines. An ORDER BY is also included to specify your sort order.

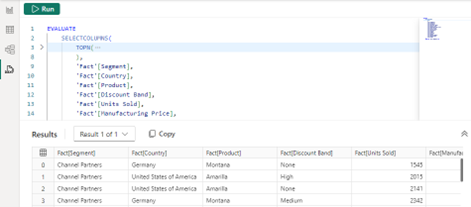

    Screenshot of the show top 100 rows.

  • Show column statistics creates a query showing statistical information for every column in your table. See many of the formulas for how to aggregate columns as MIN, MAX, AVERAGE, COUNT, and more.

  • Define all measures in this table creates a query with this table’s measure formulas shown in a query.

Columns

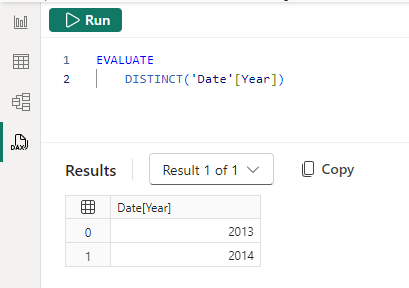

  • Show data preview creates a query using DISTINCT() to see the values of a column.

    Screenshot of the show data preview.

  • Show column statistics creates a query showing statistical information for this specific column. See many formulas for how to aggregate the column as MIN, MAX, AVERAGE, COUNT, and more. The query returned varies depending on the data type of the column, showing different statistics for numeric, text, and date columns.

    Screenshot of the show column preview.

Measures

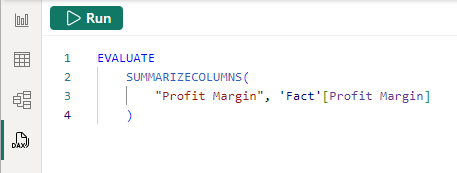

  • Evaluate creates a query to show the result of the measure. SUMMARIZECOLUMNS() is used so you can add in any group by columns to show the measure by specific groups such as Country, Product, etc.

    Screenshot of evaluate measure.

  • Define and evaluate creates a query to show the result of the measure and show the measure’s formula in a DEFINE statement that can then be modified.

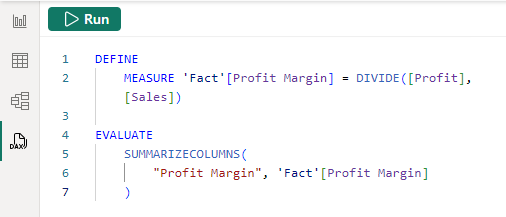

    Screenshot of the define and evaluate measure.

  • Define with references and evaluate creates a query to show the result of the measure and show not only the measure’s formula in a DEFINE statement that can be modified, but also any other measures referenced in the measure formula. Edit any part in the full context of the measure.

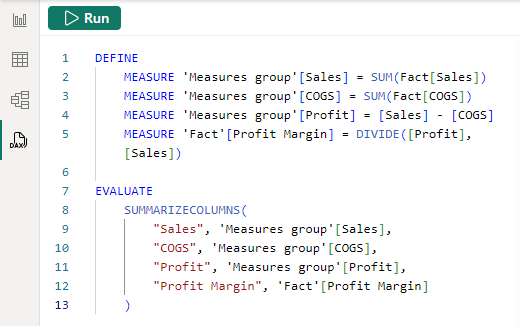

    Screenshot of define with references and evaluate.

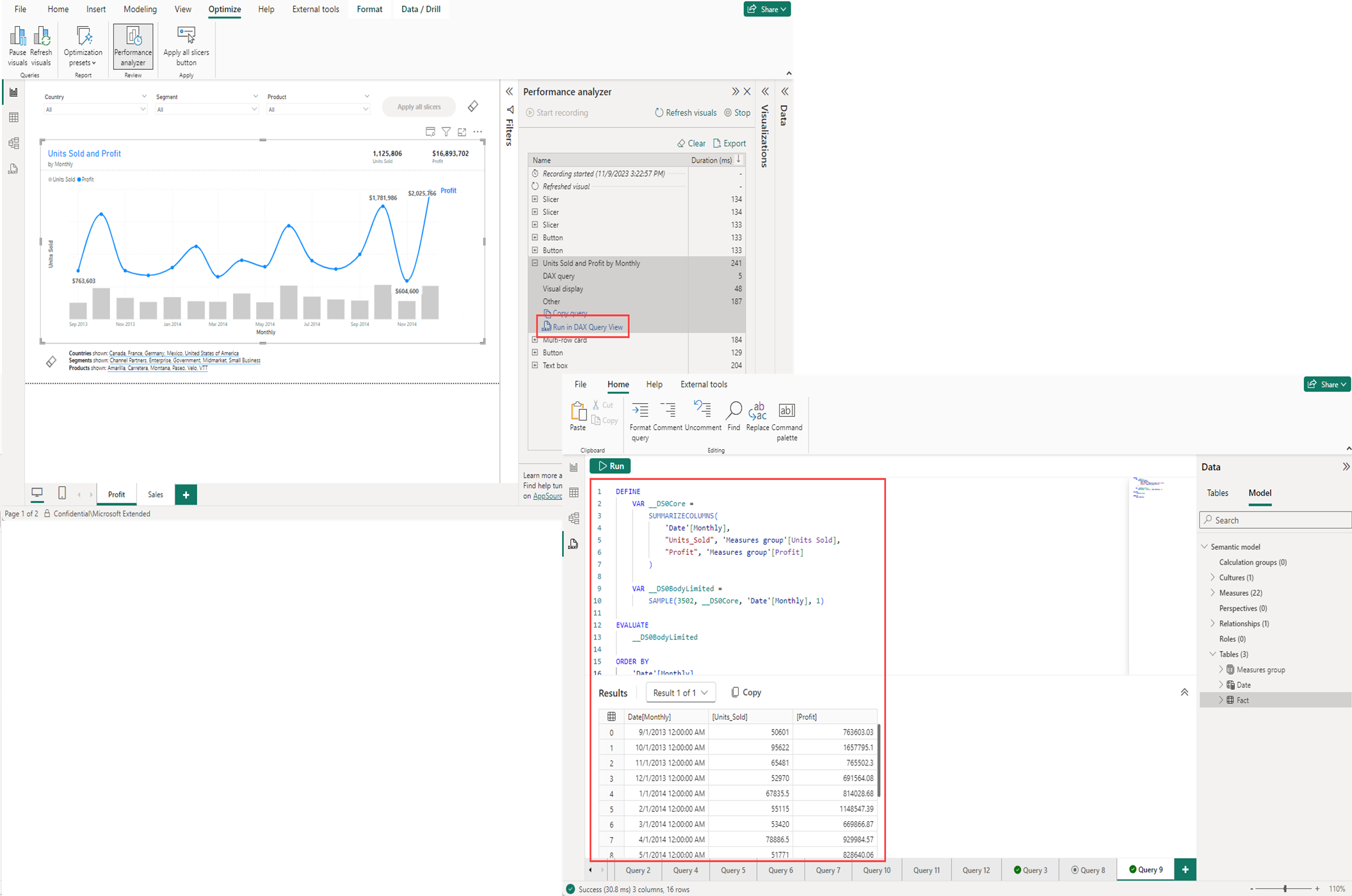

Getting visual DAX queries from Performance Analyzer

Visuals in Report view get data from the model by creating a DAX query. You can view the visual query in DAX query view by using Performance Analyzer. Performance Analyzer gives you insight into why a visual might show an unexpected value, or lets you quickly start a query you can change.

In Report view, go to the Optimize ribbon, then select Performance Analyzer. Select Start recording, then Refresh visuals. In the following table, expand a visual to see options to copy the query or run it in DAX query view. Select Run in DAX query view to add the visual query as a new Query tab in DAX query view, and run it.

Screenshot of visual DAX queries in the Performance Analyzer feature.

DAX query view and live connect in Power BI Desktop

Power BI Desktop lets you live connect to a published Power BI semantic model by selecting Connect when you select a semantic model in the OneLake data hub. The lower right-hand corner of Report view shows Live connected to the Power BI semantic model. Use DAX query view to write DAX queries when live connected.

Model measures

When live connected to a published Power BI semantic model, you can't view or edit model measures. Quick queries options are limited to Evaluate.

Report measures

When live connected to a published Power BI semantic model, you can create report measures. Create report measures using the New measure action in Report and Model view. Report measures are only available in the current report. After you create a report measure, Quick queries in DAX query view shows the option to Define with references and evaluate. DAX queries run on the semantic model, so report measures must always be converted to DAX query scoped measures in the DEFINE MEASURE block to run, because they don't exist in the model itself.

The Update model with changes button and CodeLens options to Update model aren't available for report measures.

DAX query view in web

Use DAX query view in the web to write DAX queries from published semantic models. DAX query view in the web offers the same experience as Power BI Desktop, with a few exceptions.

  • User can edit data models in the Power BI service (preview) You need to enable the Power BI workspace setting to write DAX queries. Learn more at Edit data models in the Power BI service.
  • DAX queries are discarded on close. DAX queries in Power BI Desktop save to the model, and a semantic model can have DAX queries already saved in the model. DAX query view in the web doesn't display previously saved DAX queries in the semantic model, and queries you create in the web aren't kept after you close the browser.
  • Write DAX queries requires write permission on the semantic model. Workspace viewers need to use Power BI Desktop with a live connection to the semantic model to write DAX queries.

You can't add a DAX query as a parameter using ?query= after the URL to link to DAX query view in the web.

Considerations and limitations

Considerations to keep in mind:

  • 500+ lines in DAX query editor has noticeable lag when typing.
  • Light bulb quick actions for measures only display when no DEFINE statement is in the query tab.
  • Command palette shows some commands that don't yet work.
  • Result grid doesn't show columns and measures with specified format, such as Currency, Whole number with thousands, etc.
  • Set up of the initial Git integration from the workspace doesn't include DAX queries saved in published semantic model. Learn more at Fabric Git integration.

Limitations to keep in mind:

  • Maximum of 15MB of data per query. Once 15MB is exceeded, the current row completes, but no more rows are written.

  • Maximum of 1,000,000 values per query. If you query for 20 columns, you can get back max 50,000 rows (1 million divided by 20).

  • Define all measures in this table or model is unavailable when there are more than 500 measures.

  • Running DAX queries in the web has other limitations:

    • Maximum of 99,999 rows are returned per query.
    • Write permission on the semantic model. Viewers with build permission can use Power BI Desktop to live connect and use DAX query view to run DAX queries.
    • Only available for nondefault semantic models. You can use Power BI Desktop to live connect to the default semantic model and use DAX query view to run DAX queries.

    Note

    Starting September 5, 2025, Power BI default semantic models are no longer created automatically when a warehouse, lakehouse, or mirrored item is created. If your item doesn't have a semantic model already, you can create a Power BI semantic model. Existing default semantic models will be converted to regular semantic models. For more information, see Sunsetting Default Semantic Models.
