Onboarding devices using streamlined connectivity for Microsoft Defender for Endpoint

The Defender for Endpoint client might require the use of proxied connections to relevant cloud services. This article describes the streamlined device connectivity method, the prerequisites and provides additional information for verifying connectivity using the new destination(s).

To simplify network configuration and management, you can now onboard new devices to Defender for Endpoint using a reduced URL set or static IP ranges. For more information, see Migrating devices to streamlined connectivity.

Defender for Endpoint-recognized simplified domain

The Defender for Endpoint-recognized simplified domain *.endpoint.security.microsoft.com (for commercial devices) or *.endpoint.security.microsoft.us* (for US government devices - Preview) consolidates connectivity to the following core Defender for Endpoint services:

• Cloud-delivered protection
• Malware sample submission storage
• Auto-IR sample storage
• Defender for Endpoint command & control
• Defender for Endpoint cyber and diagnostic data

For more information on preparing your environment and the updated list of destinations, see STEP 1: Configure your network environment to ensure connectivity with Defender for Endpoint service.

To support network devices without hostname resolution or wildcard support, you can alternatively configure connectivity using dedicated Defender for Endpoint static IP ranges. For more information, see Configure connectivity using static IP ranges.

Prerequisites

Devices must meet specific prerequisites to use the streamlined connectivity method for Defender for Endpoint. Ensure the prerequisites are met before proceeding with onboarding.

Minimum KB update (Windows)

• SENSE version: 10.8040.*/ March 8, 2022 or higher (see table)

Microsoft Defender Antivirus versions (Windows)

• Antimalware Client: 4.18.2211.5
• Engine: 1.1.19900.2
• Antivirus (Security Intelligence): 1.391.345.0

Supported operating systems

• Windows 10 version 1809 or later.
• Windows 10 versions 1607, 1703, 1709, 1803 are supported on the streamlined onboarding package but require a different URL list, see streamlined URL sheet
• Windows 11
• Windows Server 2019 and later
• Windows Server 2012 R2 or Windows Server 2016, fully updated running Defender for Endpoint modern unified solution (installation through MSI).
• macOS supported versions with MDE product version 101.24022.*+
• Linux supported versions with MDE product version 101.24022.*+
• Azure Stack HCI OS, version 23H2 and later.

Streamlined connectivity process

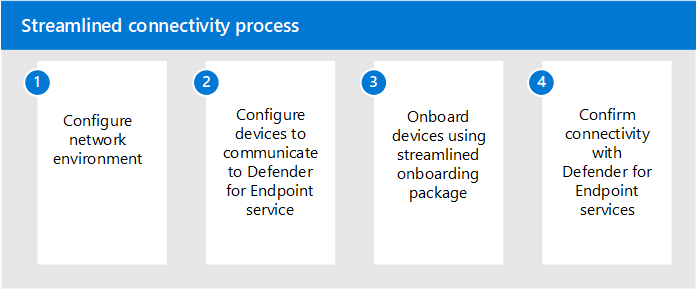

The following illustration shows the streamlined connectivity process and the corresponding stages:

Stage 1. Configure your network environment for cloud connectivity

Once you confirm prerequisites are met, ensure your network environment is properly configured to support the streamlined connectivity method. Follow the steps outlined in Configure your network environment to ensure connectivity with Defender for Endpoint service.

Defender for Endpoint service URLs consolidated under simplified domain should no longer be required for connectivity. However, some URLs aren't included in the consolidation.

Streamlined connectivity allows you to use the following option to configure cloud connectivity:

• Option 1: Use the simplified domain
• Option 2: Use static IP ranges

Option 1: Configure connectivity using the simplified domain

Configure your environment to allow connections to the simplified Defender for Endpoint domain:

• For commercial devices: *.endpoint.security.microsoft.com
• For US government devices (Preview): *.endpoint.security.microsoft.us

For more information, see Configure your network environment to ensure connectivity with Defender for Endpoint service.

You must maintain connectivity with remaining required services listed under the commercial devices streamlined URL list or government devices streamlined URL list (Preview). For example, the certification revocation list, Windows Update, SmartScreen services may also need to be accessible dependent on your current networking infrastructure and patching approach.

Option 2: Configure connectivity using static IP ranges

With streamlined connectivity, IP-based solutions can be used as an alternative to URLs. These IPs cover the following services:

• MAPS
• Malware Sample Submission Storage
• Auto-IR Sample Storage
• Defender for Endpoint Command and Control

In order to stay up to date on IP ranges, it's recommended to refer to the following Azure service tags for Microsoft Defender for Endpoint services. The latest IP ranges are found in the service tag. For more information, see Azure IP ranges.

For latest service tags list, refer to the Azure service tags documentation.

Stage 2. Configure your devices to connect to Defender for Endpoint service

Configure devices to communicate through your connectivity infrastructure. Ensure devices meet prerequisites and have updated sensor and Microsoft Defender Antivirus versions. For more information, see Configure device proxy and Internet connection settings .

Stage 3. Verify client connectivity pre-onboarding

For more information, see Verify client connectivity.

The following pre-onboarding checks can be run on both Windows and Xplat MDE Client analyzer: Download the Microsoft Defender for Endpoint client analyzer.

To test streamlined connectivity for devices not yet onboarded to Defender for Endpoint, you can use the Client Analyzer for Windows using the following commands:

• Run mdeclientanalyzer.cmd -o <path to cmd file> from within the MDEClientAnalyzer folder. The command uses parameters from onboarding package to test connectivity.

• Run mdeclientanalyzer.cmd -g <GW_US, GW_UK, GW_EU> , where parameter is of GW_US, GW_EU, GW_UK. GW refers to the streamlined option. Run with applicable tenant geo.

As a supplementary check, you can also use the client analyzer to test whether a device meets prerequisites: [MDEClientAnalyzerPreview.zip]{https://aka.ms/MDEClientAnalyzerPreview}.

Stage 4. Apply the new onboarding package required for streamlined connectivity

Once you configure your network to communicate with the full list of services, you can begin onboarding devices using the streamlined method.

Before proceeding, confirm devices meet the prerequisites and have updated sensor and Microsoft Defender Antivirus versions.

1. To get the new package, in Microsoft Defender XDR, select Settings > Endpoints > Device management> Onboarding.

2. Select the applicable operating system and choose "Streamlined" from the Connectivity type dropdown menu.

3. For new devices (not onboarded to Defender for Endpoint) supported under this method, follow onboarding steps from previous sections using the updated onboarded package with your preferred deployment method:

   • Onboard to Microsoft Defender for Endpoint
   • Onboard client devices running Windows or macOS
   • Onboard servers through Microsoft Defender for Endpoint's onboarding experience
   • Run a detection test on a device to verify it has been properly onboarded to Microsoft Defender for Endpoint

4. Exclude devices from any existing onboarding policies that use the standard onboarding package.

For migrating devices already onboarded to Defender for Endpoint, see Migrating devices to the streamlined connectivity. You must reboot your device and follow specific guidance here.
