N-tier architecture style

An N-tier architecture divides an application into logical layers and physical tiers.

Layers separate responsibilities and manage dependencies. Each layer has a specific responsibility. A higher layer can use services in a lower layer, but a lower layer can't use services in a higher layer.

Tiers are physically separated and run on separate machines. Contractually, the tier can have strict or relaxed communication models. In the strict model, a request must go through adjacent tiers, one by one, and can't skip any tier in between. For example, a request travels from the web application firewall (WAF) to the web tier, then to middle tier 1, and continues on. In contrast, the relaxed approach allows requests to skip some tiers if necessary. The strict approach has greater latency and overhead. The relaxed approach has more couplings, which makes changes more difficult. You can also combine both approaches in the same system.

A tier can call to another tier directly, or use asynchronous messaging patterns through a message queue. You might host each layer in its own tier, but this approach isn't required. You can host several layers on the same tier. Physical separation of tiers improves scalability and resiliency but also adds latency from the extra network communication.

A traditional three-tier application has a presentation tier, an optional middle tier, and a database tier. More complex applications can have more than three tiers. The previous diagram shows an application with two middle tiers that encapsulate different areas of functionality.

An N-tier application can have a closed layer architecture or an open layer architecture:

• In a closed layer architecture, a layer can only call the next layer immediately down.
• In an open layer architecture, a layer can call any layers below it.

A closed layer architecture limits the dependencies between layers. But this architecture might create unnecessary network traffic if one layer only passes requests along to the next layer.

When to use this architecture

Consider an N-tier architecture for the following scenarios:

• Support architectural requirements that are still evolving.
• Migrate an on-premises application to Azure with minimal changes.
• Develop applications that span both on-premises and cloud environments.

N-tier architectures are common in traditional on-premises systems, which makes them a natural fit for transitioning existing workloads to Azure.

Implement N-tier architectures effectively by using managed services that provide scalability, reliability, and reduced operational overhead or virtual machines (VMs). These workloads often benefit from also using managed solutions for key components such as caching, messaging, and data storage.

Benefits

• Portable across cloud and on-premises, and between cloud platforms
• Requires less learning curve for most developers
• Costs relatively little by not rearchitecting the solution
• Follows a natural evolution from the traditional application model
• Supports mixed environments that include Windows and Linux

Challenges

• A middle tier might only perform basic create, read, update, delete (CRUD) operations, which adds latency and complexity without delivering meaningful value.
• Monolithic design prevents independent deployment of features.
• Large systems can make network security difficult to manage.
• User requests and data that move through multiple tiers make testing and monitoring more difficult.

Best practices

• Use autoscaling to handle changes in load. For more information, see Autoscaling best practices.
• Use asynchronous messaging to decouple tiers.
• Cache data that doesn't change often. For more information, see Caching best practices.
• Configure the database tier for high availability by using a solution such as SQL Server Always On availability groups.
• Place a WAF between the front end and the internet.
• Place each tier in its own subnet, and use subnets as a security boundary.
• Restrict access to the data tier by allowing requests from a middle tier only.

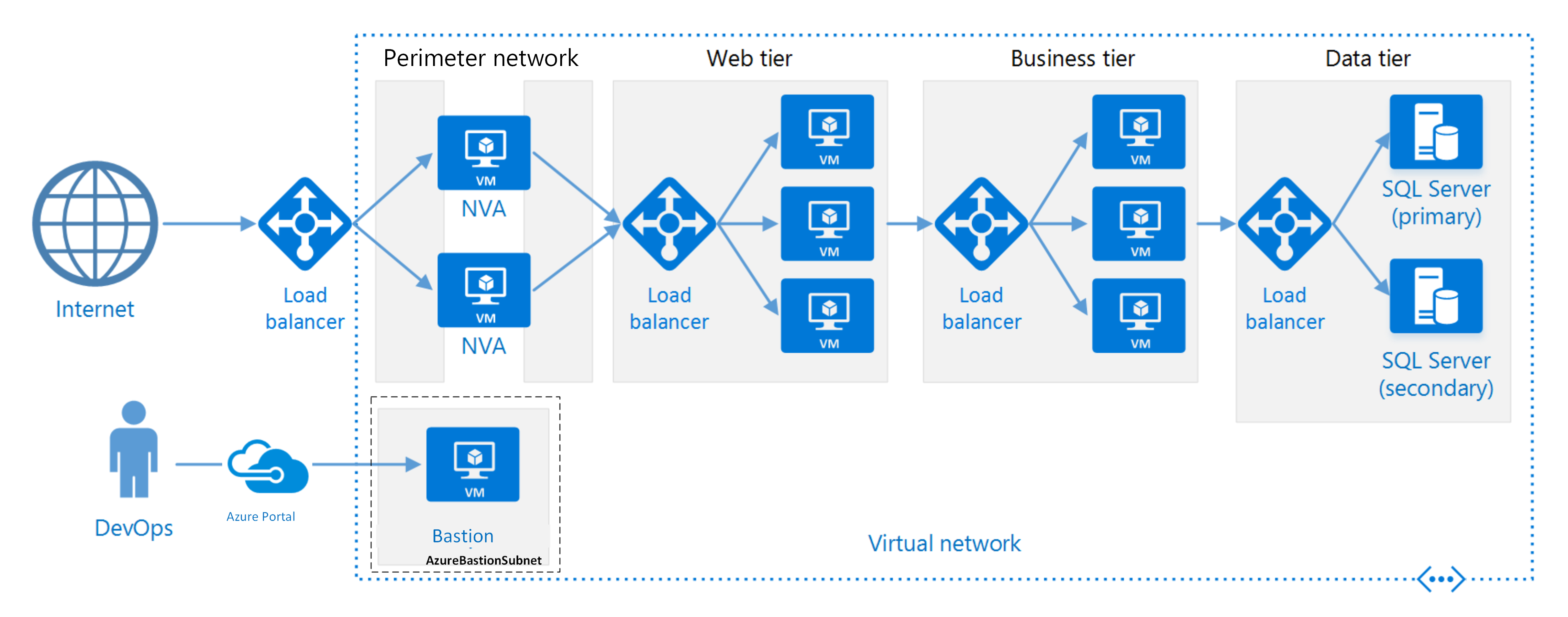

N-tier architecture on VMs

This section describes an N-tier architecture that runs on VMs.

Each tier consists of a virtual machine scale set that has two or more VMs. Multiple VMs provide resiliency if one VM fails. Load balancers distribute requests across the VMs in a tier. You can scale a tier horizontally by adding more VMs to the pool.

Each tier is also placed inside its own subnet, which means that their internal IP addresses fall within the same address range. This approach makes it easy to apply network security group rules and route tables to individual tiers.

The web and business tiers are stateless. Any VM can handle any request for that tier. The data tier should consist of a replicated database. Where possible, use a managed database, but you can also host databases on VMs hosted databases. For Windows, we recommend SQL Server with Always On availability groups for high availability. For Linux, choose a database that supports replication, such as Apache Cassandra.

Network security groups restrict access to each tier. For example, the database tier only allows access from the business tier.

Other considerations

• N-tier architectures aren't restricted to three tiers. More complex applications often have more tiers. In that case, consider using layer-7 routing to route requests to a particular tier.

• Tiers create boundaries for scalability, reliability, and security. Consider having separate tiers for services with different requirements in those areas.

• Use virtual machine scale sets for autoscaling.

• Find places in the architecture where you can use a managed service without significant refactoring. In particular, consider caching, messaging, storage, and databases.

• Place a perimeter network (also known as DMZ, demilitarized zone, and screened subnet) in front of the application for higher security. The perimeter network includes network virtual appliances (NVAs) that implement security functionality such as firewalls and packet inspection. For more information, see Implement a secure hybrid network.

• Use two or more NVAs in a virtual machine scale set, with an external load balancer to distribute internet requests across the instances for high availability. For more information, see Deploy highly available NVAs.

• Block direct Remote Desktop Protocol (RDP) or Secure Shell (SSH) access to VMs that run application code. Instead, use Azure Bastion to securely connect to VMs via private IP addresses, which provides RDP and SSH connectivity. For more information, see Azure Bastion overview.

• Extend the Azure virtual network to your on-premises network by using a site-to-site virtual private network (VPN) or Azure ExpressRoute. For more information, see Hybrid network reference architecture.
