Trace and Observe AI Agents in Azure AI Foundry (preview)

In this article, you learn how to:

• Understand key tracing concepts
• Trace and observe AI agents in AI Foundry
• Explore new semantic conventions with multi-agent observability
• Integrate with popular agent frameworks
• View traces in the AI Foundry portal and Azure Monitor

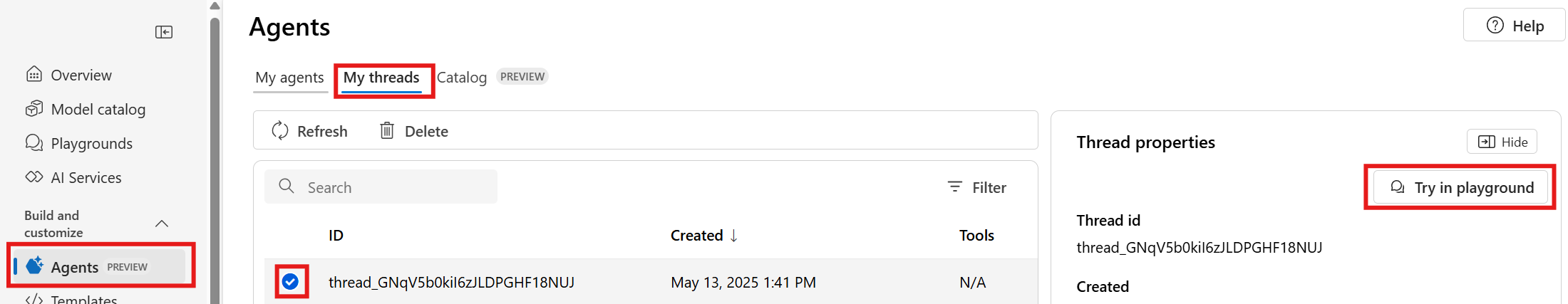

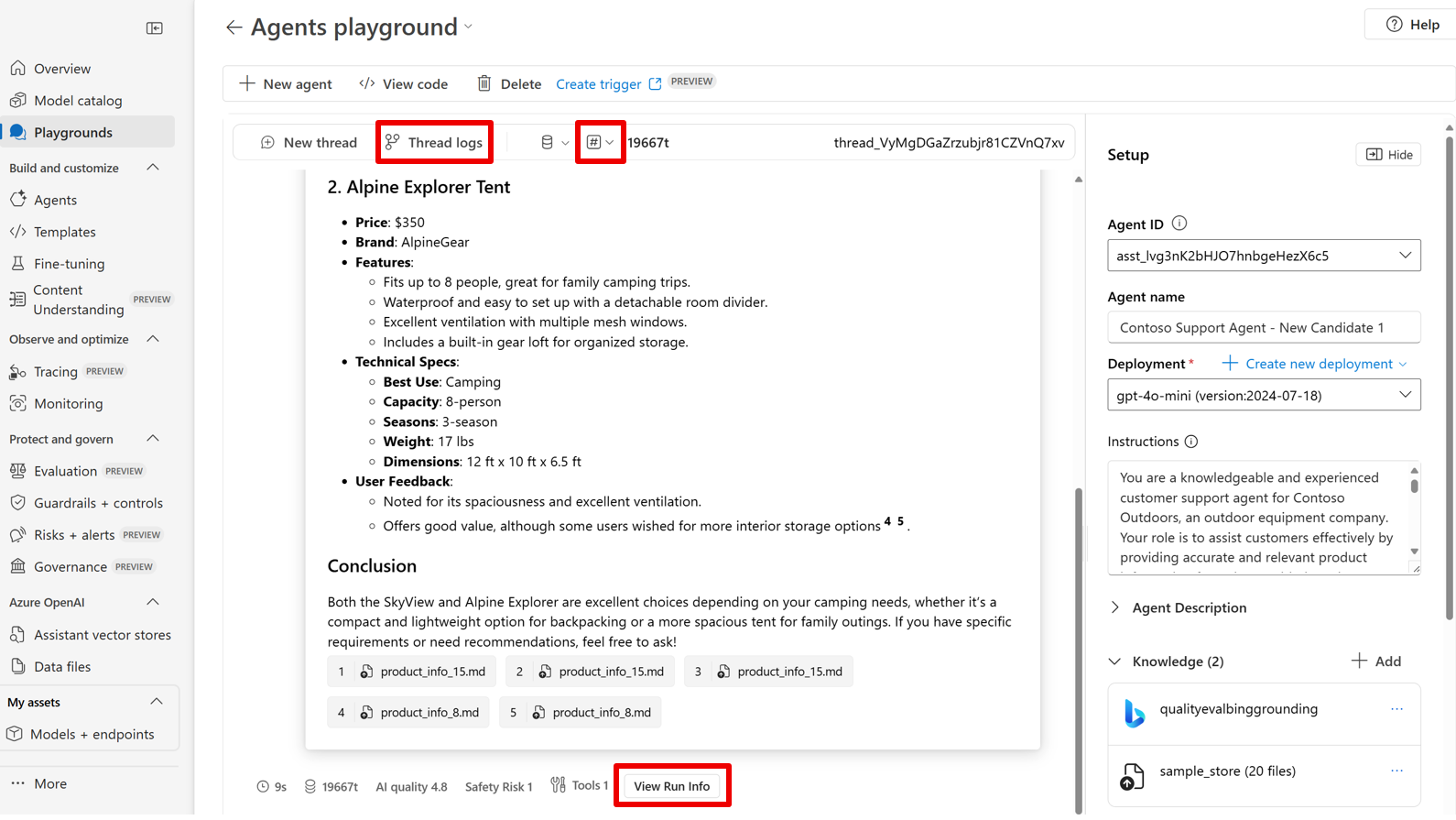

• View agent threads in the Agents playground

Determining the reasoning behind your agent's executions is important for troubleshooting and debugging. However, it can be difficult for complex agents for many reasons:

• There could be a high number of steps involved in generating a response, making it hard to keep track of all of them.
• The sequence of steps might vary based on user input.
• The inputs/outputs at each stage might be long and deserve more detailed inspection.
• Each step of an agent's runtime might also involve nesting. For example, an agent might invoke a tool, which uses another process, which then invokes another tool. If you notice strange or incorrect output from a top-level agent run, it might be difficult to determine exactly where in the execution the issue was introduced.

Trace results solve this by allowing you to view the inputs and outputs of each primitive involved in a particular agent run, displayed in the order they were invoked, making it easy to understand and debug your AI agent's behavior.

Trace key concepts overview

Here's a brief overview of key concepts before getting started:

Best practices

• Use consistent span attributes.
• Correlate evaluation run IDs for quality + performance analysis.
• Redact sensitive content; avoid storing secrets in attributes.

Extending OpenTelemetry with multi-agent observability

Microsoft is enhancing multi-agent observability by introducing new semantic conventions to OpenTelemetry, developed collaboratively with Outshift, Cisco's incubation engine. These additions—built upon OpenTelemetry and W3C Trace Context—establish standardized practices for tracing and telemetry within multi-agent systems, facilitating consistent logging of key metrics for quality, performance, safety, and cost. This systematic approach enables more comprehensive visibility into multi-agent workflows, including tool invocations and collaboration. These advancements have been integrated into Azure AI Foundry, Microsoft Agent Framework, Semantic Kernel, and Azure AI packages for LangChain, LangGraph, and the OpenAI Agents SDK, enabling customers to get unified observability for agentic systems built using any of these frameworks with Azure AI Foundry. Learn more about tracing integrations.

Set up tracing in Azure AI Foundry SDK

For chat completions or building agents with Azure AI Foundry, install:

pip install azure-ai-projects azure-identity

To instrument tracing, you need to install the following instrumentation libraries:

pip install azure-monitor-opentelemetry opentelemetry-sdk

To view traces in Azure AI Foundry, you need to connect an Application Insights resource to your Azure AI Foundry project.

1. Navigate to Tracing in the left navigation pane of the Azure AI Foundry portal.
2. Create a new Application Insights resource if you don't already have one.
3. Connect the resource to your AI Foundry project.

Instrument tracing in your code

To trace the content of chat messages, set the AZURE_TRACING_GEN_AI_CONTENT_RECORDING_ENABLED environment variable to true (case insensitive). Keep in mind this might contain personal data. To learn more, see Azure Core Tracing OpenTelemetry client library for Python.

import os
os.environ["AZURE_TRACING_GEN_AI_CONTENT_RECORDING_ENABLED"] = "true" # False by default

Let's begin instrumenting our agent with OpenTelemetry tracing by starting with authenticating and connecting to your Azure AI Project using the AIProjectClient.

from azure.ai.projects import AIProjectClient
from azure.identity import DefaultAzureCredential
project_client = AIProjectClient(
    credential=DefaultAzureCredential(),
    endpoint=os.environ["PROJECT_ENDPOINT"],
)

Next, retrieve the connection string from the Application Insights resource connected to your project and set up the OTLP exporters to send telemetry into Azure Monitor.

from azure.monitor.opentelemetry import configure_azure_monitor

connection_string = project_client.telemetry.get_application_insights_connection_string()
configure_azure_monitor(connection_string=connection_string) #enable telemetry collection

Now, trace your code where you create and execute your agent and user message in your Azure AI Project, so you can see detailed steps for troubleshooting or monitoring.

from opentelemetry import trace
tracer = trace.get_tracer(__name__)

with tracer.start_as_current_span("example-tracing"):
    agent = project_client.agents.create_agent(
        model=os.environ["MODEL_DEPLOYMENT_NAME"],
        name="my-assistant",
        instructions="You are a helpful assistant"
    )
    thread = project_client.agents.threads.create()
    message = project_client.agents.messages.create(
        thread_id=thread.id, role="user", content="Tell me a joke"
    )
    run = project_client.agents.runs.create_and_process(thread_id=thread.id, agent_id=agent.id)

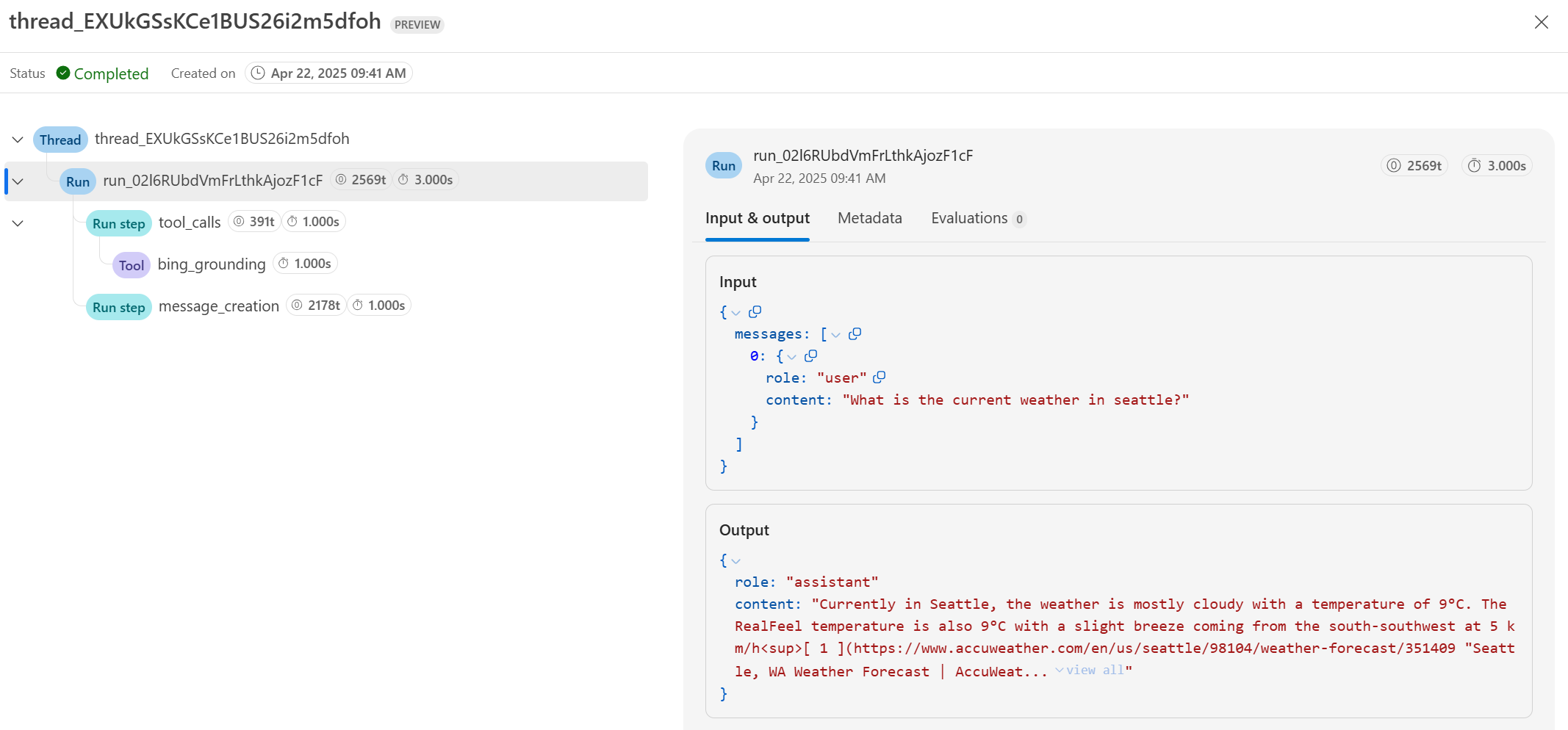

After running your agent, you can begin to view traces in Azure AI Foundry Portal.

Log traces locally

To connect to Aspire Dashboard or another OpenTelemetry compatible backend, install the OpenTelemetry Protocol (OTLP) exporter. This enables you to print traces to the console or use a local viewer such as Aspire Dashboard.

pip install azure-core-tracing-opentelemetry opentelemetry-exporter-otlp opentelemetry-sdk

Next, configure tracing for console output:

from azure.core.settings import settings
settings.tracing_implementation = "opentelemetry"

from opentelemetry import trace
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import SimpleSpanProcessor, ConsoleSpanExporter

# Setup tracing to console
span_exporter = ConsoleSpanExporter()
tracer_provider = TracerProvider()
tracer_provider.add_span_processor(SimpleSpanProcessor(span_exporter))
trace.set_tracer_provider(tracer_provider)

Or modify the above code, based on Aspire Dashboard, to trace to a local OTLP viewer.

Now enable Agent instrumentation and run your Agent:

from azure.ai.agents.telemetry import AIAgentsInstrumentor
AIAgentsInstrumentor().instrument()

# Start tracing
tracer = trace.get_tracer(__name__)

with tracer.start_as_current_span("example-tracing"):
    agent = project_client.agents.create_agent(
        model=os.environ["MODEL_DEPLOYMENT_NAME"],
        name="my-assistant",
        instructions="You are a helpful assistant"
    )
    thread = project_client.agents.threads.create()
    message = project_client.agents.messages.create(
        thread_id=thread.id, role="user", content="Tell me a joke"
    )
    run = project_client.agents.runs.create_and_process(thread_id=thread.id, agent_id=agent.id)

Alternative: AI Toolkit for VS Code

AI Toolkit gives you a simple way to trace locally in VS Code. It uses a local OTLP-compatible collector, making it ideal for development and debugging.

The toolkit supports AI frameworks like Azure AI Foundry Agents Service, OpenAI, Anthropic, and LangChain through OpenTelemetry. You can see traces instantly in VS Code without needing cloud access.

For detailed setup instructions and SDK-specific code examples, see Tracing in AI Toolkit.

Trace custom functions

To trace your custom functions, use the OpenTelemetry SDK to instrument your code.

1. Set up a tracer provider: Initialize a tracer provider to manage and create spans.
2. Create spans: Wrap the code you want to trace with spans. Each span represents a unit of work and can be nested to form a trace tree.
3. Add attributes: Enrich spans with attributes to provide more context for the trace data.
4. Configure an exporter: Send the trace data to a backend for analysis and visualization.

Here's an example of tracing a custom function:

from opentelemetry import trace
from opentelemetry.trace import SpanKind

# Initialize tracer
tracer = trace.get_tracer(__name__)

def custom_function():
    with tracer.start_as_current_span("custom_function") as span:
        span.set_attribute("custom_attribute", "value")
        # Your function logic here
        print("Executing custom function")

custom_function()

For detailed instructions and advanced usage, refer to the OpenTelemetry documentation.

Attach user feedback to traces

To attach user feedback to traces and visualize it in the Azure AI Foundry portal, you can instrument your application to enable tracing and log user feedback using OpenTelemetry's semantic conventions.

By correlating feedback traces with their respective chat request traces using the response ID or thread ID, you can view and manage these traces in the Azure AI Foundry portal. OpenTelemetry's specification allows for standardized and enriched trace data, which can be analyzed in the Azure AI Foundry portal for performance optimization and user experience insights. This approach helps you use the full power of OpenTelemetry for enhanced observability in your applications.

To log user feedback, follow this format:

The user feedback evaluation event can be captured if and only if the user provided a reaction to the GenAI model response. It SHOULD, when possible, be parented to the GenAI span describing such response.

The user feedback event body has the following structure:

Using service name in trace data

To identify your service via a unique ID in Application Insights, you can use the service name OpenTelemetry property in your trace data. This is useful if you're logging data from multiple applications to the same Application Insights resource, and you want to differentiate between them.

For example, let's say you have two applications: App-1 and App-2, with tracing configured to log data to the same Application Insights resource. Perhaps you'd like to set up App-1 to be evaluated continuously by Relevance and App-2 to be evaluated continuously by Relevance. You can use the service name to filter by Application when monitoring your application in AI Foundry Portal.

To set up the service name property, you can do so directly in your application code by following the steps, see Using multiple tracer providers with different Resource. Alternatively, you can set the environment variable OTEL_SERVICE_NAME before deploying your app. To learn more about working with the service name, see OTEL Environment Variables and Service Resource Semantic Conventions.

To query trace data for a given service name, query for the cloud_roleName property.

| where cloud_RoleName == "service_name"

Integrations

Azure AI Foundry makes it easy to log traces with minimal changes by using our tracing integrations with Microsoft Agent Framework, Semantic Kernel, LangChain, LangGraph, and OpenAI Agent SDK.

Tracing agents built on Microsoft Agent Framework and Semantic Kernel

Azure AI Foundry has native integrations with Microsoft Agent Framework and Semantic Kernel. Agents built on these two frameworks get out-of-the-box tracing in Azure AI Foundry Observability.

• Learn more about tracing and observability in Semantic Kernel and Microsoft Agent Framework.

Enable tracing for Agents built on LangChain & LangGraph

You can enable tracing for LangChain that follows OpenTelemetry standards as per opentelemetry-instrumentation-langchain.

Once necessary packages are installed, you can easily begin to Instrument tracing in your code.

Sample: LangChain v1 agent with Azure AI tracing

Use this end-to-end sample to instrument a LangChain v1 agent using the langchain-azure-ai tracer, which implements the latest OpenTelemetry (OTel) spec so you can view rich traces in Azure AI Foundry Observability.

Install packages

pip install \
  langchain-azure-ai \
  langchain \
  langgraph \
  langchain-openai \
  azure-identity \
  python-dotenv \
  rich

Configure environment

• APPLICATION_INSIGHTS_CONNECTION_STRING: Azure Monitor Application Insights connection string for tracing.
• AZURE_OPENAI_ENDPOINT: Your Azure OpenAI endpoint URL.
• AZURE_OPENAI_CHAT_DEPLOYMENT: The chat model deployment name.
• AZURE_OPENAI_VERSION: API version, for example 2024-08-01-preview.
• Azure credentials are resolved via DefaultAzureCredential (supports environment variables, managed identity, VS Code sign-in, etc.).

You can store these in a .env file for local development.

Tracer setup

from dotenv import load_dotenv
import os
from langchain_azure_ai.callbacks.tracers import AzureAIOpenTelemetryTracer

load_dotenv(override=True)

azure_tracer = AzureAIOpenTelemetryTracer(
    connection_string=os.environ.get("APPLICATION_INSIGHTS_CONNECTION_STRING"),
    enable_content_recording=True,
    name="Weather information agent",
    id="weather_info_agent_771929",
)

tracers = [azure_tracer]

Model setup (Azure OpenAI)

import os
import azure.identity
from langchain_openai import AzureChatOpenAI

token_provider = azure.identity.get_bearer_token_provider(
    azure.identity.DefaultAzureCredential(),
    "https://cognitiveservices.azure.com/.default",
)

model = AzureChatOpenAI(
    azure_endpoint=os.environ.get("AZURE_OPENAI_ENDPOINT"),
    azure_deployment=os.environ.get("AZURE_OPENAI_CHAT_DEPLOYMENT"),
    openai_api_version=os.environ.get("AZURE_OPENAI_VERSION"),
    azure_ad_token_provider=token_provider,
)

Define tools and prompt

from dataclasses import dataclass
from langchain_core.tools import tool

system_prompt = """You are an expert weather forecaster, who speaks in puns.

You have access to two tools:

- get_weather_for_location: use this to get the weather for a specific location
- get_user_location: use this to get the user's location

If a user asks you for the weather, make sure you know the location.
If you can tell from the question that they mean wherever they are,
use the get_user_location tool to find their location."""

# Mock user locations keyed by user id (string)
USER_LOCATION = {
    "1": "Florida",
    "2": "SF",
}


@dataclass
class UserContext:
    user_id: str


@tool
def get_weather(city: str) -> str:
    """Get weather for a given city."""
    return f"It's always sunny in {city}!"

Use runtime context and define a user-info tool

from langgraph.runtime import get_runtime
from langchain_core.runnables import RunnableConfig

@tool
def get_user_info(config: RunnableConfig) -> str:
    """Retrieve user information based on user ID."""
    runtime = get_runtime(UserContext)
    user_id = runtime.context.user_id
    return USER_LOCATION[user_id]

Create the agent

from langchain.agents import create_agent
from langgraph.checkpoint.memory import InMemorySaver
from dataclasses import dataclass


@dataclass
class WeatherResponse:
    conditions: str
    punny_response: str


checkpointer = InMemorySaver()

agent = create_agent(
    model=model,
    prompt=system_prompt,
    tools=[get_user_info, get_weather],
    response_format=WeatherResponse,
    checkpointer=checkpointer,
)

Run the agent with tracing

from rich import print

def main():
    config = {"configurable": {"thread_id": "1"}, "callbacks": [azure_tracer]}
    context = UserContext(user_id="1")

    r1 = agent.invoke(
        {"messages": [{"role": "user", "content": "what is the weather outside?"}]},
        config=config,
        context=context,
    )
    print(r1.get("structured_response"))

    r2 = agent.invoke(
        {"messages": [{"role": "user", "content": "Thanks"}]},
        config=config,
        context=context,
    )
    print(r2.get("structured_response"))


if __name__ == "__main__":
    main()

With langchain-azure-ai enabled, all LangChain v1 operations (LLM calls, tool invocations, agent steps) are traced using the latest OpenTelemetry semantic conventions and appear in Azure AI Foundry Observability, linked to your Application Insights resource.

Sample: LangGraph agent with Azure AI tracing

This sample shows a simple LangGraph agent instrumented with langchain-azure-ai to emit OpenTelemetry-compliant traces for graph steps, tool calls, and model invocations.

Install packages

pip install \
  langchain-azure-ai \
  langgraph==1.0.0a4 \
  langchain==1.0.0a10 \
  langchain-openai \
  azure-identity \
  python-dotenv

Configure environment

• APPLICATION_INSIGHTS_CONNECTION_STRING: Azure Monitor Application Insights connection string for tracing.
• AZURE_OPENAI_ENDPOINT: Your Azure OpenAI endpoint URL.
• AZURE_OPENAI_CHAT_DEPLOYMENT: The chat model deployment name.
• AZURE_OPENAI_VERSION: API version, for example 2024-08-01-preview.

You can store these in a .env file for local development.

Tracer setup

import os
from dotenv import load_dotenv
from langchain_azure_ai.callbacks.tracers import AzureAIOpenTelemetryTracer

load_dotenv(override=True)

azure_tracer = AzureAIOpenTelemetryTracer(
    connection_string=os.environ.get("APPLICATION_INSIGHTS_CONNECTION_STRING"),
    enable_content_recording=os.getenv("OTEL_RECORD_CONTENT", "true").lower() == "true",
    name="Music Player Agent",
)

Tools

from langchain_core.tools import tool

@tool
def play_song_on_spotify(song: str):
    """Play a song on Spotify"""
    # Integrate with Spotify API here.
    return f"Successfully played {song} on Spotify!"


@tool
def play_song_on_apple(song: str):
    """Play a song on Apple Music"""
    # Integrate with Apple Music API here.
    return f"Successfully played {song} on Apple Music!"


tools = [play_song_on_apple, play_song_on_spotify]

Model setup (Azure OpenAI)

import os
import azure.identity
from langchain_openai import AzureChatOpenAI

token_provider = azure.identity.get_bearer_token_provider(
    azure.identity.DefaultAzureCredential(),
    "https://cognitiveservices.azure.com/.default",
)

model = AzureChatOpenAI(
    azure_endpoint=os.environ.get("AZURE_OPENAI_ENDPOINT"),
    azure_deployment=os.environ.get("AZURE_OPENAI_CHAT_DEPLOYMENT"),
    openai_api_version=os.environ.get("AZURE_OPENAI_VERSION"),
    azure_ad_token_provider=token_provider,
).bind_tools(tools, parallel_tool_calls=False)

Build the LangGraph workflow

from langgraph.graph import END, START, MessagesState, StateGraph
from langgraph.prebuilt import ToolNode
from langgraph.checkpoint.memory import MemorySaver

tool_node = ToolNode(tools)

def should_continue(state: MessagesState):
    messages = state["messages"]
    last_message = messages[-1]
    return "continue" if getattr(last_message, "tool_calls", None) else "end"


def call_model(state: MessagesState):
    messages = state["messages"]
    response = model.invoke(messages)
    return {"messages": [response]}


workflow = StateGraph(MessagesState)
workflow.add_node("agent", call_model)
workflow.add_node("action", tool_node)

workflow.add_edge(START, "agent")
workflow.add_conditional_edges(
    "agent",
    should_continue,
    {
        "continue": "action",
        "end": END,
    },
)
workflow.add_edge("action", "agent")

memory = MemorySaver()
app = workflow.compile(checkpointer=memory)

Run with tracing

from langchain_core.messages import HumanMessage

config = {"configurable": {"thread_id": "1"}, "callbacks": [azure_tracer]}
input_message = HumanMessage(content="Can you play Taylor Swift's most popular song?")

for event in app.stream({"messages": [input_message]}, config, stream_mode="values"):
    event["messages"][-1].pretty_print()

With langchain-azure-ai enabled, your LangGraph execution emits OpenTelemetry-compliant spans for model calls, tool invocations, and graph transitions. These traces flow to Application Insights and surface in Azure AI Foundry Observability.

Sample: LangChain 0.3 setup with Azure AI tracing

This minimal setup shows how to enable Azure AI tracing in a LangChain 0.3 application using the langchain-azure-ai tracer and AzureChatOpenAI.

Install packages

pip install \
  "langchain>=0.3,<0.4" \
  langchain-openai \
  langchain-azure-ai \
  python-dotenv

Configure environment

• APPLICATION_INSIGHTS_CONNECTION_STRING: Application Insights connection string for tracing.
• AZURE_OPENAI_ENDPOINT: Azure OpenAI endpoint URL.
• AZURE_OPENAI_CHAT_DEPLOYMENT: Chat model deployment name.
• AZURE_OPENAI_VERSION: API version, for example 2024-08-01-preview.
• AZURE_OPENAI_API_KEY: Azure OpenAI API key.

Tracer and model setup

import os
from dotenv import load_dotenv
from langchain_azure_ai.callbacks.tracers import AzureAIOpenTelemetryTracer
from langchain_openai import AzureChatOpenAI

load_dotenv(override=True)

# Tracer: emits spans conforming to updated OTel spec
azure_tracer = AzureAIOpenTelemetryTracer(
    connection_string=os.environ.get("APPLICATION_INSIGHTS_CONNECTION_STRING"),
    enable_content_recording=True,
    name="Trip Planner Orchestrator",
    id="trip_planner_orchestrator_v3",
)
tracers = [azure_tracer]

# Model: Azure OpenAI with callbacks for tracing
llm = AzureChatOpenAI(
    azure_deployment=os.environ.get("AZURE_OPENAI_CHAT_DEPLOYMENT"),
    api_key=os.environ.get("AZURE_OPENAI_API_KEY"),
    azure_endpoint=os.environ.get("AZURE_OPENAI_ENDPOINT"),
    api_version=os.environ.get("AZURE_OPENAI_VERSION"),
    temperature=0.2,
    callbacks=tracers,
)

Attach callbacks=[azure_tracer] to your chains, tools, or agents to ensure LangChain 0.3 operations are traced and visible in Azure AI Foundry Observability.

Enable tracing for Agents built on OpenAI Agents SDK

Use this snippet to configure OpenTelemetry tracing for the OpenAI Agents SDK and instrument the framework. It exports to Azure Monitor if APPLICATION_INSIGHTS_CONNECTION_STRING is set; otherwise, it falls back to the console.

import os
from opentelemetry import trace
from opentelemetry.instrumentation.openai_agents import OpenAIAgentsInstrumentor
from opentelemetry.sdk.resources import Resource
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import BatchSpanProcessor, ConsoleSpanExporter

# Configure tracer provider + exporter
resource = Resource.create({
    "service.name": os.getenv("OTEL_SERVICE_NAME", "openai-agents-app"),
})
provider = TracerProvider(resource=resource)

conn = os.getenv("APPLICATION_INSIGHTS_CONNECTION_STRING")
if conn:
    from azure.monitor.opentelemetry.exporter import AzureMonitorTraceExporter
    provider.add_span_processor(
        BatchSpanProcessor(AzureMonitorTraceExporter.from_connection_string(conn))
    )
else:
    provider.add_span_processor(BatchSpanProcessor(ConsoleSpanExporter()))

trace.set_tracer_provider(provider)

# Instrument the OpenAI Agents SDK
OpenAIAgentsInstrumentor().instrument(tracer_provider=trace.get_tracer_provider())

# Example: create a session span around your agent run
tracer = trace.get_tracer(__name__)
with tracer.start_as_current_span("agent_session[openai.agents]"):
    # ... run your agent here
    pass

View traces in the Azure AI Foundry portal

In your project, go to Tracing to filter your traces as you see fit.

By selecting a trace, you can step through each span and identify issues while observing how your application is responding. This can help you debug and pinpoint issues in your application.

View traces in Azure Monitor

If you logged traces using the previous code snippet, then you're all set to view your traces in Azure Monitor Application Insights. You can open Application Insights from Manage data source and use the End-to-end transaction details view to further investigate.

For more information on how to send Azure AI Inference traces to Azure Monitor and create Azure Monitor resource, see Azure Monitor OpenTelemetry documentation.

View thread results in the Azure AI Foundry Agents playground

The Agents playground in the Azure AI Foundry portal lets you view results for threads and runs that your agents produce. To see thread results, select Thread logs in an active thread. You can also optionally select Metrics to enable automatic evaluations of the model's performance across several dimensions of AI quality and Risk and safety.

After selecting Thread logs, review:

• Thread details
• Run information
• Ordered run steps and tool calls
• Inputs and outputs between user and agent
• Linked evaluation metrics (if enabled)

Related content

• Python samples containing fully runnable Python code for tracing using synchronous and asynchronous clients.
• Python samples for tracing agents with console tracing and Azure Monitor
• JavaScript samples containing fully runnable JavaScript code for tracing using synchronous and asynchronous clients.
• C# Samples containing fully runnable C# code for doing inference using synchronous and asynchronous methods.
