Bugcheck 1001 blue screen + restart

Question

Bugcheck 1001 blue screen + restart

Man WOn 60

Hello to you, after an analysis by your technician, a first report allowed us to successfully determine the need to reinstall the motherboard drivers, resolving the problems encountered, then another generating a blue screen with a bugcheck 1001 error and a restart of the PC requiring the reinstallation of less recent graphics card drivers.

Nous avons installé une version un peu plus récente voir capture d'écran malheureusement il y a eu un autre crash ce matin j'ai allumé la machine et après quelques minutes de navigation un écran bleu est apparu puis un redémarrage dont voici le rapport

L'ordinateur a redémarré après une vérification d'erreur. La vérification d'erreur était : 0x0000000a (0x0000000000000010, 0x0000000000000002, 0x00000000000000000, 0xfffff80305234bb9). Une vidéo a été enregistrée dans : C:\Windows\Minidumps\101725-11984-01.dmp. ID de rapport : 4493f751-8639-4eb2-aeb0-3549bce380b4.

https://drive.google.com/file/d/1uoR8xhUIcMkCawOcRa-cA8KtD-O2ulcN/view?usp=sharing

Here is the link to my post on your forums and the responses from your technical services.

https://free.blessedness.top/en-us/answers/questions/5575780/bugcheck-erreur-1001-windows?page=1&orderby=Helpful&translated=false#answers

Est-ce toujours un problème de pilote de carte graphique à votre avis ?

thanking you for any help you can provide

Answer accepted by question author

1 additional answer

Your answer

Answer 1

Ivan B 78,210 Independent Advisor

Hi ,

If it is a laptop or desktop, if possible, could you provide the laptop model or your desktop configuration?

Thanks

Answer 2

Man WOn 60

bonjour à vous et merci pour votre aide, il s'agit d'un pc fixe

Processeur : 12th Gen Intel(R) Core(TM) i9-12900K 3.20 GHz

Carte graphique : NVIDIA GeForce RTX 4060 Ti (8 GB) pilote gameready version 577

Type du système : Système d’exploitation 64 bits sur windows 10

je pense désinstaller le driver avec ddu et installer la 566.36 vu les problèmes actuel de nvidia

Ivan B 78,210 Reputation points Independent Advisor

2025-10-18T19:32:22.3033333+00:00

Hi ,

The minidump you sent me was with the kernel. Could it be a problem with the motherboard drivers?

What is the motherboard model?

Thanks
Man WOn 60 Reputation points

2025-10-18T20:39:29.55+00:00

MAG Z790 TOMAHAWK MAX WIFI (MS-7E25

The motherboard drivers have been successfully reinstalled since your last recommendations and the TV was turning off and on by itself since then there are no more problems, this happened several times a week and thank you for being able to resolve this problem. Another of your colleagues has checked the minidup file

Here is the answer as of today 10/17/2025 This new minidump file simply indicates generic errors, no specific cause of this crash has been listed, if your system continues to crash, please upload any new minidump files you can obtain for analysis.
Ivan B 78,210 Reputation points Independent Advisor

2025-10-18T21:12:31.35+00:00

Hi ,

Did you manage to update the bios and firmware?

Thanks
Man WOn 60 Reputation points

2025-10-19T07:03:37.28+00:00

the bios yes, but for the firmware I don't see what you are referring to

The BIOS takes care of updating everything; this is indicated in the driver page description. – Modify security settings. – The Fix Fan setting will be modified after selecting Exit without saving. – Update ME firmware v16.1.38.2676 Available at this address: https://www.msi.com/Motherboard/MAG-Z790-TOMAHAWK-MAX-WIFI/support#bios
Man WOn 60 Reputation points

2025-10-19T13:02:48.7366667+00:00

As a precautionary measure, we have managed to install the famous 566.36 version, the most stable to date, and in view of the current problems at NVIDIA concerning the 30, 40 and 50 series, we thank you for your support.
Ivan B 78,210 Reputation points Independent Advisor

2025-10-19T15:44:18.31+00:00

Hi ,

In this case, it is a good idea to download the firmware along with installing the chipset and other Intel drivers.

Thanks
Man WOn 60 Reputation points

2025-10-19T17:12:28.37+00:00

I don't understand, what exactly do you advise me to do, the bios update took place several weeks ago now and the reinstallation of the motherboard drivers was recent?
Ivan B 78,210 Reputation points Independent Advisor

2025-10-19T17:15:57.8133333+00:00

Hi ,

After you do firmware update in the bios tab if you have already installed the motherboard drivers then ignore what my previous message I'm sorry

Thanks
Man WOn 60 Reputation points

2025-10-23T06:37:36.0366667+00:00

Hello everyone, this time when starting the PC during the boot window at the MSI motherboard logo the PC started to start and suddenly it stopped and shut down by itself, luckily a minidump file was generated, let's hope it is possible to finally find the culprit

erreur 29 kernel-boot

Échec du démarrage rapide de Windows avec l’état d’erreur 0xC0000001.

erreur bug check 1001

L’ordinateur a redémarré après une vérification d’erreur. La vérification d’erreur était : 0x000000a0 (0x000000000000010e, 0x000000000000000a, 0x000000000000099e, 0x000000000000bb18). Un vidage a été enregistré dans : C:\Windows\Minidumps\102325-11421-01.dmp. ID de rapport : 7dc3a729-fa14-472f-81bf-59971f75f907.

lien news file minidmp :

https://drive.google.com/file/d/1C38MoX_byravcx8Ftu5RNkTrRq0ijT3A/view?usp=sharing
Man WOn 60 Reputation points

2025-10-23T10:32:45.0133333+00:00

I've also had this error for some time.

erreur 1801 tpm-wmi

Les clés/l’autorité de certification de démarrage sécurisé doivent être mises à jour. Ces informations de signature d’appareil sont incluses ici.

DeviceAttributes : BaseBoardManufacturer:Micro-Star International Co., Ltd.;FirmwareManufacturer:American Megatrends International, LLC.;FirmwareVersion:A.A0;OEMModelBaseBoard:MAG Z790 TOMAHAWK MAX WIFI (MS-7E25);OEMManufacturerName:Micro-Star International Co., Ltd.;OSArchitecture:amd64;

BucketId : 9bd9bd176f3b9e49c1a077ab4c87035818809be2cde2a4a63daf3966494130d4

BucketConfidenceLevel :

UpdateType : 0

HResult : L’opération a réussi.
Man WOn 60 Reputation points

2025-10-23T12:26:34.5233333+00:00

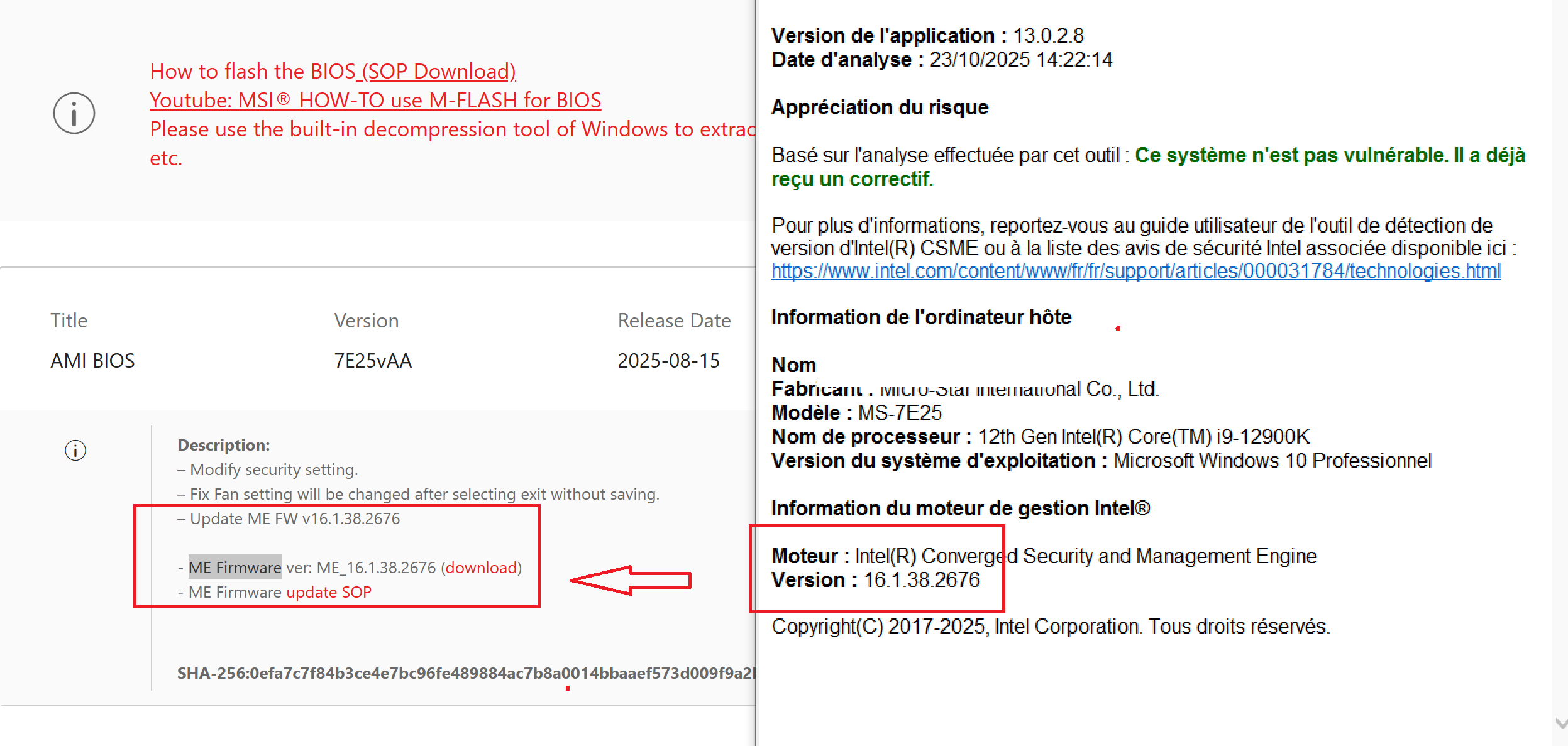

I also confirm that the firmware is installed correctly.
Ivan B 78,210 Reputation points Independent Advisor

2025-10-23T21:12:44.5233333+00:00

Hi ,

According to the minidump it was a hardware failure and it was with the Storage controller so the case would be your SSD or Nvme Input that caused the failure another one is showing failure

Thanks
Man WOn 60 Reputation points

2025-10-24T06:57:05.9333333+00:00

Oh yeah, and is it serious? What should I do? It's a false contact or it's more serious, doctor.
Ivan B 78,210 Reputation points Independent Advisor

2025-10-25T08:05:55.61+00:00

Hi ,

Your SSD or your desktop motherboard may be faulty.

If you have experience, you can try installing the M.2 in a different slot or installing the storage controller driver.

https://download.msi.com/dvr_exe/mb/intel_rst_20.0_.zip

Note: This is a non-Microsoft website. The page appears to be providing accurate, safe information. Watch out for ads on the site that may advertise products frequently classified as a PUP (Potentially Unwanted Products). Thoroughly research any product advertised on the site before you decide to download and install it.

Thanks
Man WOn 60 Reputation points

2025-10-25T16:07:32.3233333+00:00

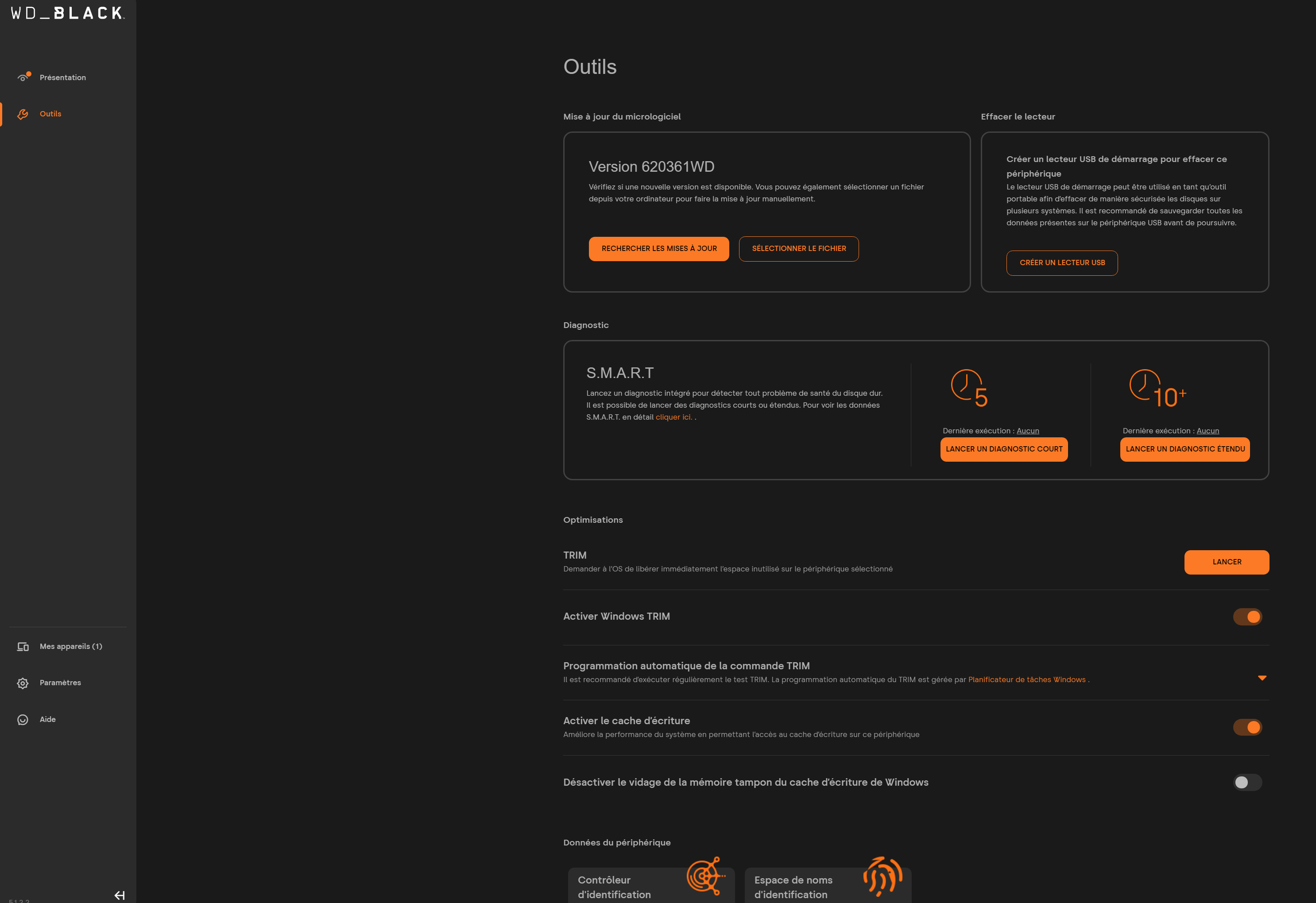

First of all, thank you for your help and feedback. I tried to install the driver from the motherboard's official website, but it wasn't possible. After that, I checked if a fast storage option was enabled in the BIOS, but nothing works. Does this mean that the M2 is not compatible with my motherboard model? I'm attaching the M2 software as a screenshot. The firmware is up to date, as is the application.

I see it's an Intel driver but the m2: WD_BLACK SN850X 2TB M.2 2280 PCIe Gen4 NVMe SSD for gaming and there are no drivers https://support-fr.sandisk.com/app/products/product-detailweb/p/8695

Newer drivers are not available for manual download from Western Digital and are only available through Windows or Mac updates.

Do you have a contact form that I can contact directly to request this driver or can you possibly provide them?
Ivan B 78,210 Reputation points Independent Advisor

2025-10-25T17:07:38.0133333+00:00

Hi ,

In this case, the driver must be from the motherboard. If the installation of two failed, the BIOS says the storage system is AHCI, not RST, and sometimes it doesn't work. However, there isn't a driver for the M.2 drive, but for the controller, which would be Intel.

https://downloadmirror.intel.com/865363/SetupRST.exe

You can check for M.2 firmware on the WD website. However, if the dashboard didn't identify an update, you must be on the latest version.

Note: This is a non-Microsoft website. The page appears to be providing accurate, safe information. Watch out for ads on the site that may advertise products frequently classified as a PUP (Potentially Unwanted Products). Thoroughly research any product advertised on the site before you decide to download and install it.

Thanks
Man WOn 60 Reputation points

2025-10-25T19:18:57.2+00:00

If I understand correctly, I have an Intel controller but it is managed by the motherboard manufacturer?

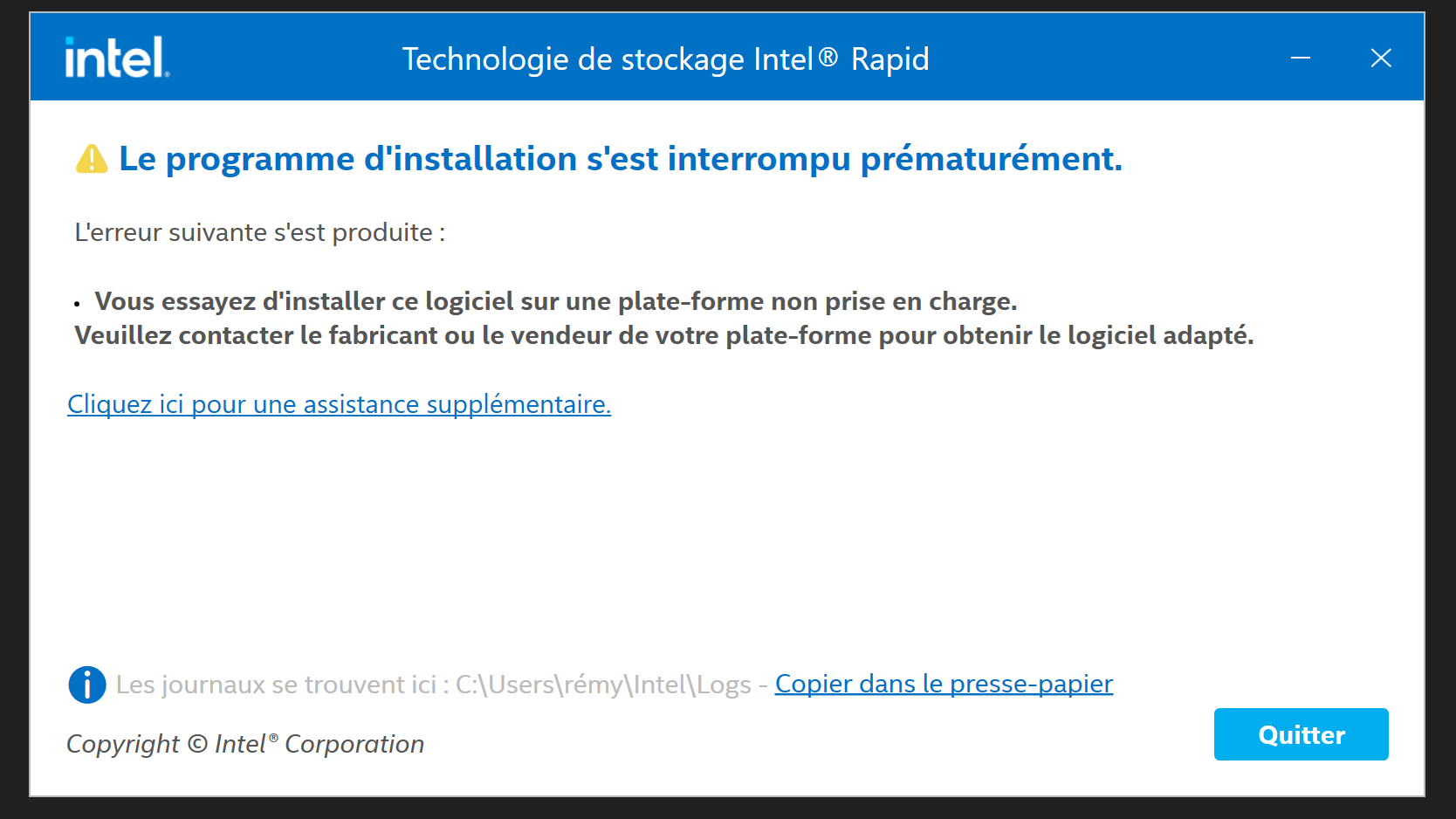

I confirm that I am in ahci in the bios and not in rst as well as the impossibility of installing https://downloadmirror.intel.com/865363/SetupRST.exe the installation is resolved by a failure, I made a request to the msi technical service to ask them if they had a driver to provide us, awaiting a response that I will let you know as soon as possible, what should we do for this problem, is the configuration without the rst essential to run windows with this m2 if the motherboard manufacturer cannot provide us with a driver?
Ivan B 78,210 Reputation points Independent Advisor

2025-10-25T20:50:11.6133333+00:00

Hi ,

I don't think it could be a driver issue if you tried installing the controller driver from the link I sent you if it is in AHCI don't change it keep it as it is the problem is Hardware what could be your M.2 or M.2 input on the motherboard.

Thanks
