Application Gateway with WAF performance degradation

Martin Kutlák 20 Reputation points
2025-09-22T11:01:13.0233333+00:00

We are very often experiencing crashes/performance degradation of our Application Gateway with associated WAF in detection mode. Throughput on the AGW is just about 100 req/s and it doesn't change much throughout the day (IoT devices requests, all across EU).

If we dissociate WAF from the AGW, it works without any issues. But once the WAF is added (detection mode, owasp rules, bot detection), we get these issues.

We tried different configurations of the AGW but nothing seems to help. We tried:

  1. manual scale of 2 instances
  2. autoscaling from 0 to 4 instances
  3. autoscaling from 2 to 4 instances

What can we do to fix resilience/availability of the AGW with WAF?

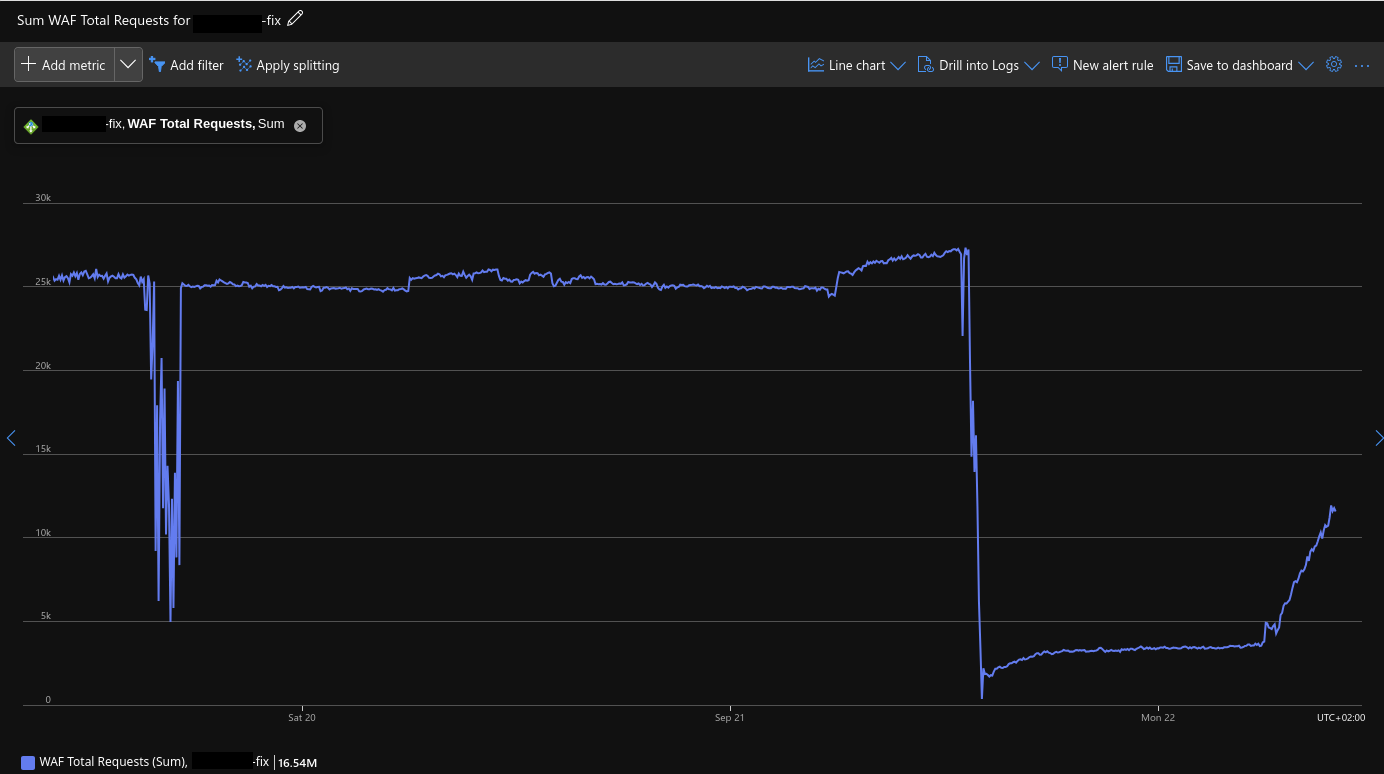

WAF requests

waf total requests, 5 min interval

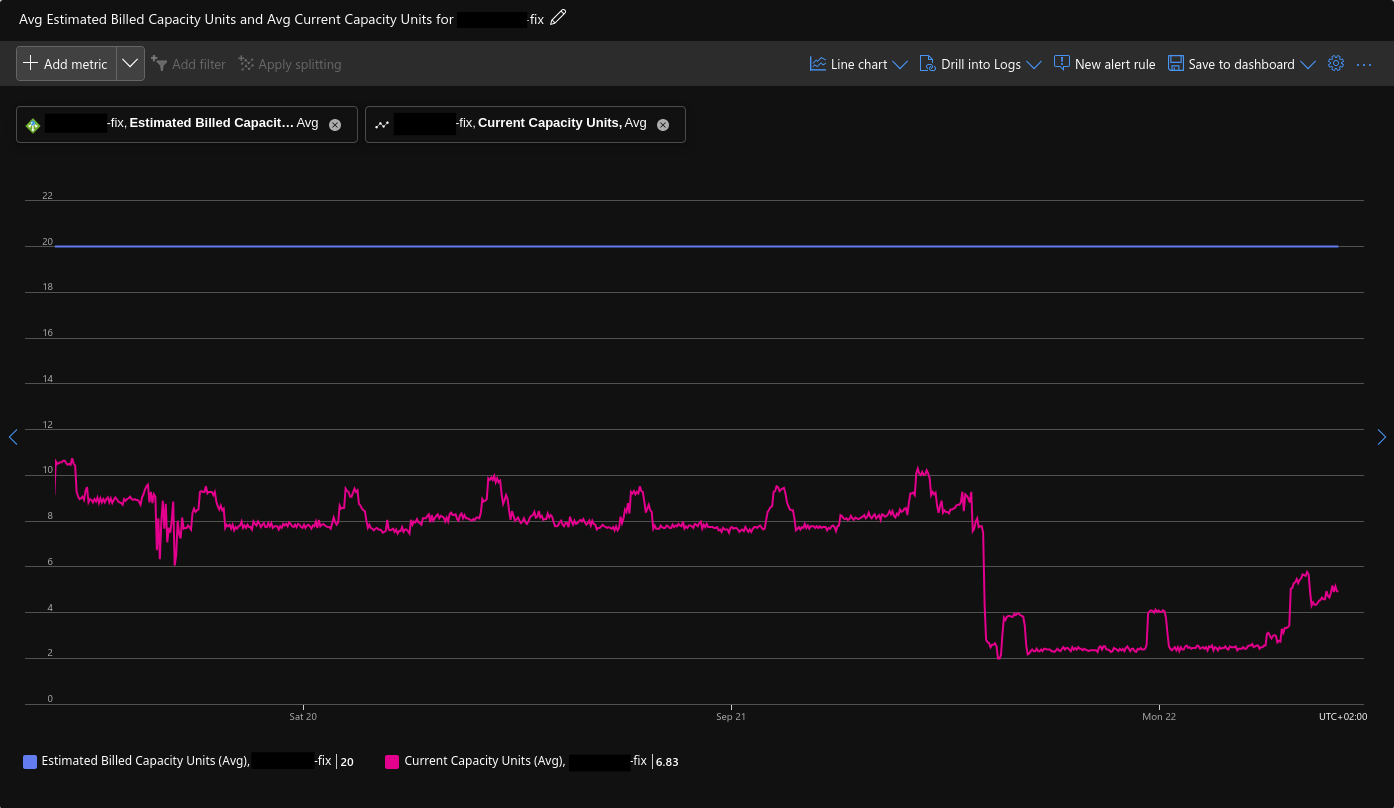

Estimated billing vs Used compute units

compute units, 5 min interval

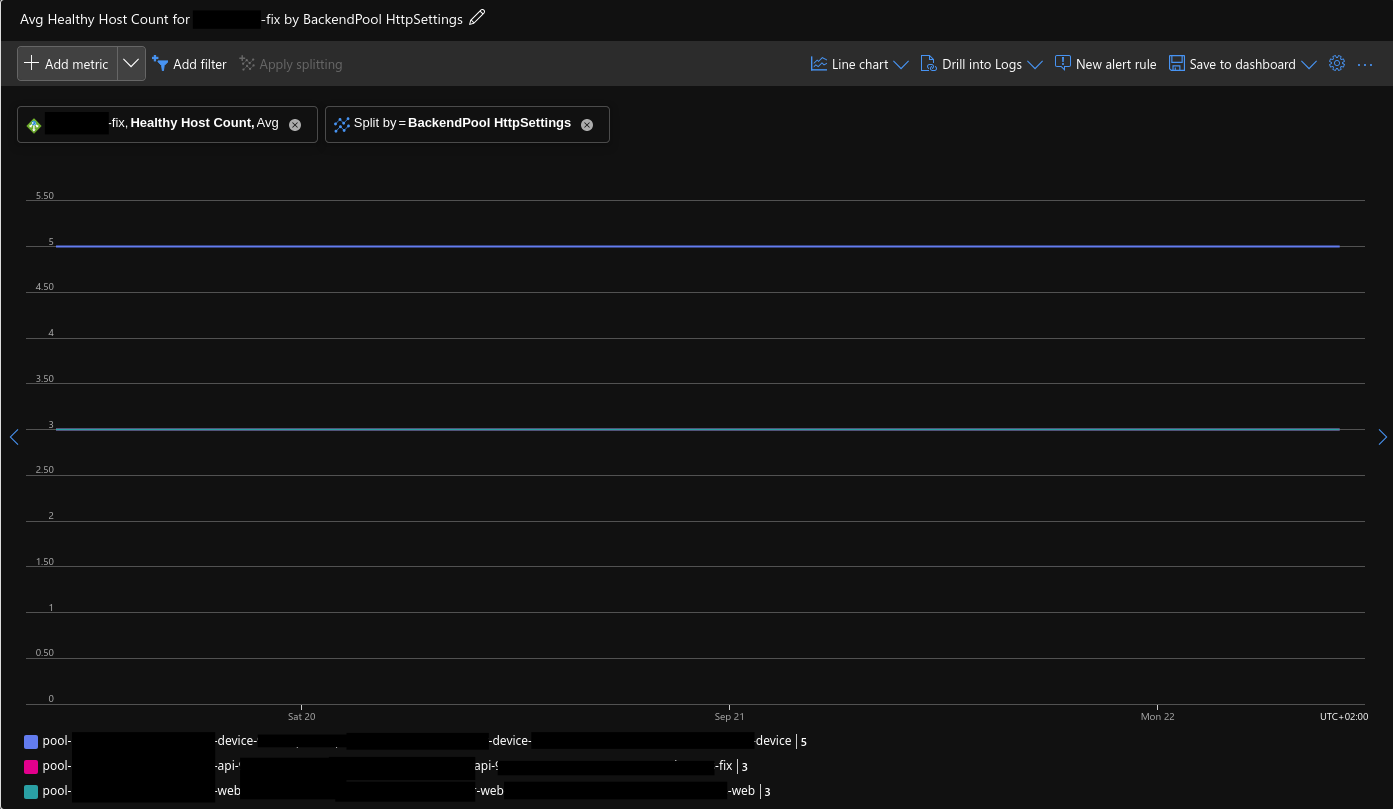

Health backends

healthy_bcknd

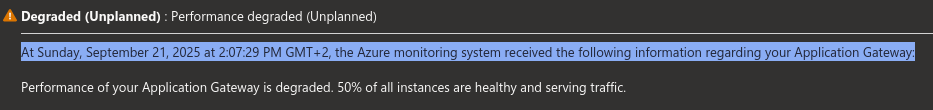

Resource health alerts

We get these alerts once or twice a week. But there are some performance issues pretty much every day.

application gateway resource

Azure Web Application Firewall
Answer accepted by question author
  1. Jeevan Shanigarapu 2,375 Reputation points Microsoft External Staff Moderator
    2025-09-22T12:38:04.43+00:00

    Hello @Martin Kutlák,

    Welcome to Microsoft Q&A Platform. Thank you for reaching out & hope you are doing well.

    I understand your question about the crashes and performance issues with your Application Gateway and the WAF running in detection mode. The throughput on the gateway is around 100 requests per second and remains fairly consistent throughout the day, as these are IoT device requests from across the EU.

    To help enhance resilience and availability, here are some recommended next steps:

    Activate and assess diagnostics:

    Enable Application Gateway diagnostics, including Access, Performance, and Firewall logs, and direct them to Log Analytics.

    Monitor metrics such as Compute Unit utilization, Unhealthy host count, and Failed requests to analyze WAF activity in relation to traffic spikes.

    Check backend probe logs to ensure that backend servers are not causing the degraded health status.

    Adjust the WAF Policy Settings: In detection mode, use the logs to identify false positives or unnecessary inspections.

    1.       Exclude non-critical headers or body fields for IoT traffic.

    2.       Disable or customize rule groups that generate high false positives (for example, bot detection or SQLi checks if they don’t apply).

    3.       Ensure you’re using the latest OWASP ruleset (e.g., 3.2.5 or later) for improved performance and fewer false positives.

    Revise the scaling strategy as needed:

    Make sure you are using the Application Gateway v2 SKU, as it supports autoscaling and zone redundancy.

    Set a minimum instance count (for example, 2–4) to help prevent instability during scale-in and allow a higher maximum (up to 10–20 if necessary).

    Enabling zone redundancy is advised to improve resiliency across different regions.

    Additional Resilience Steps:

    You may want to implement rate limiting or set up custom WAF rules to manage high-traffic devices.

    If stability problems continue, consider whether placing Azure Front Door in front of AGW could help with traffic inspection.

    Next step: Could you please confirm the following:

    Which SKU (v1 or v2) and region is your AGW deployed in?

    What WAF ruleset version are you currently using?

    With this information, I can offer more accurate guidance. If you still encounter issues after these steps, I suggest submitting a Microsoft support case with your diagnostic data for further analysis.

    Kindly let us know if the above helps or you need further assistance on this issue.

    Please do not forget to "Accept the answer” and “up-vote it” wherever the information provided helps you, this can be beneficial to other community members__.__ It would be greatly appreciated and helpful to others.

    1 person found this answer helpful.

1 additional answer

Sort by: Most helpful
Most helpful Newest Oldest
  1. Sina Salam 25,761 Reputation points Volunteer Moderator
    2025-09-25T10:32:34.4866667+00:00

    Hello Martin Kutlák,

    Welcome to the Microsoft Q&A and thank you for posting your questions here.

    I understand that you are having Application Gateway with WAF performance degradation.

    Perform the below steps for resolve the issues and use the links for more details:

    1. Migrate from OWASP 3.1 to DRS 2.1, which is optimized for WAF_v2 to enhance protection and performance. - https://free.blessedness.top/en-us/azure/web-application-firewall/ag/application-gateway-waf-metrics
    2. Activate Access, Performance, Firewall, and AllMetrics logs, routing them to Log Analytics for visibility and troubleshooting. - https://free.blessedness.top/en-us/azure/web-application-firewall/ag/web-application-firewall-troubleshoot
    3. Leverage Azure Monitor to track CU utilization, backend response latency, request volume fluctuations, and unhealthy instance ratios. For a full metric list, see Application Gateway Metrics - https://free.blessedness.top/en-us/azure/application-gateway/application-gateway-metrics
    4. Adjust policies by disabling unnecessary rules such as MSBotManager or specific SQLi checks (e.g., 942130). Apply exclusion lists for headers or body fields to handle IoT-related traffic. -https://free.blessedness.top/en-us/azure/web-application-firewall/ag/web-application-firewall-troubleshoot
    5. Configure WAF_v2 SKU with a baseline of 4 instances, scaling up to 10–20 as required, and enable zone redundancy for resilience. - https://free.blessedness.top/en-us/azure/application-gateway/high-traffic-support
    6. Use Azure Network Watcher flow logs to investigate packet drops, routing failures, or anomalies during WAF downtime. - https://free.blessedness.top/en-us/azure/network-watcher/network-watcher-monitoring-overview
    7. For global load balancing and enhanced inspection, consider adding Azure Front Door in front of Application Gateway. - https://free.blessedness.top/en-us/azure/frontdoor/front-door-overview

    I hope this is helpful! Do not hesitate to let me know if you have any other questions or clarifications.

    Please don't forget to close up the thread here by upvoting and accept it as an answer if it is helpful.
