Enable semantic caching for LLM APIs in Azure API Management

APPLIES TO: All API Management tiers

Enable semantic caching of responses to LLM API requests to reduce bandwidth and processing requirements imposed on the backend APIs and lower latency perceived by API consumers. With semantic caching, you can return cached responses for identical prompts and also for prompts that are similar in meaning, even if the text isn't identical. For background, see Tutorial: Use Azure Managed Redis as a semantic cache.

Prerequisites

• Add one or more Azure OpenAI in Azure AI Foundry model deployments as APIs to your API Management instance. For more information, see Add an Azure OpenAI API to Azure API Management.

• Create deployments for the following APIs:

  • Chat Completion API - Deployment used for API consumer calls
  • Embeddings API - Deployment used for semantic caching

• Configure the API Management instance to use managed identity authentication to the Azure OpenAI APIs. For more information, see Authenticate and authorize access to Azure OpenAI APIs using Azure API Management .

• An Azure Managed Redis instance with the RediSearch module enabled on the Redis cache.

  Note

  You can only enable the RediSearch module when creating a new Azure Managed Redis cache. You can't add a module to an existing cache. Learn more

• Configure the Azure Managed Redis instance as an external cache in the Azure API Management instance. For steps, see Use an external Redis-compatible cache in Azure API Management.

Test Chat API deployment

First, test the Azure OpenAI deployment to make sure the Chat Completion API or Chat API works as expected. For steps, see Import an Azure OpenAI API to Azure API Management.

For example, test the Azure OpenAI Chat API by sending a POST request to the API endpoint with a prompt in the request body. The response should include the completion of the prompt. Example request:

POST https://my-api-management.azure-api.net/my-api/openai/deployments/chat-deployment/chat/completions?api-version=2024-02-01

with request body:

{"messages":[{"role":"user","content":"Hello"}]}

When the request succeeds, the response includes a completion for the chat message.

Create a backend for embeddings API

Create a backend resource for the embeddings API deployment with the following settings:

• Name - A name of your choice, such as embeddings-backend. You use this name to reference the backend in policies.

• Type - Select Custom URL.

• Runtime URL - The URL of the embeddings API deployment in Azure OpenAI, similar to: https://my-aoai.openai.azure.com/openai/deployments/embeddings-deployment/embeddings (without query parameters).

• Authorization credentials - Go to Managed Identity tab.

  • Client identity - Select System assigned identity or enter a user-assigned managed identity client ID.
  • Resource ID - Enter https://cognitiveservices.azure.com/ for Azure OpenAI.

Test embeddings backend

To test the embeddings backend, create an API operation for your Azure OpenAI API:

1. On the Design tab of your API, select + Add operation.
2. Enter a Display name such as Embeddings and optionally a Name for the operation.
3. In the Frontend section, in URL, select POST and enter the path /.
4. On the Headers tab, add a required header with the name Content-Type and value application/json.
5. Select Save.

Configure the following policies in the Inbound processing section of the API operation. In the set-backend-service policy, substitute the name of the backend you created.

<policies>
    <inbound>
        <set-backend-service backend-id="embeddings-backend" />
        <authentication-managed-identity resource="https://cognitiveservices.azure.com/" />
        [...]
    </inbound>
    [...]
</policies>

On the Test tab, test the operation by adding an api-version query parameter with value such as 2024-02-01. Provide a valid request body. For example:

{"input":"Hello"}

If the request is successful, the response includes a vector representation of the input text. Example response:

{
    "object": "list",
    "data": [{
        "object": "embedding",
        "index": 0,
        "embedding": [
            -0.021829502,
            -0.007157768,
            -0.028619017,
            [...]
        ]
    }]
}

Configure semantic caching policies

To enable semantic caching for Azure OpenAI APIs in Azure API Management, apply the following policies: one to check the cache before sending requests (lookup) and another to store responses for future reuse (store):

• In the Inbound processing section for the API, add the azure-openai-semantic-cache-lookup policy. In the embeddings-backend-id attribute, specify the Embeddings API backend you created.

  Note

  When enabling semantic caching for other large language model APIs, use the llm-semantic-cache-lookup policy instead.

  Example:

  <azure-openai-semantic-cache-lookup
      score-threshold="0.15"
      embeddings-backend-id="embeddings-backend"
      embeddings-backend-auth="system-assigned"
      ignore-system-messages="true"
      max-message-count="10">
      <vary-by>@(context.Subscription.Id)</vary-by>
  </azure-openai-semantic-cache-lookup>
  <rate-limit calls="10" renewal-period="60" />


  Note

  The rate-limit policy added after the cache lookup helps limit the number of calls to prevent overload on the backend service in case the cache isn't available.

• In the Outbound processing section for the API, add the azure-openai-semantic-cache-store policy.

  Note

  When enabling semantic caching for other large language model APIs, use the llm-semantic-cache-store policy instead.

  Example:

  <azure-openai-semantic-cache-store duration="60" />


Confirm caching

To confirm that semantic caching works as expected, trace a test Completion or Chat Completion operation by using the test console in the portal. Confirm that the cache is used on subsequent tries by inspecting the trace. Learn more about tracing API calls in Azure API Management.

Adjust the score-threshold attribute in the lookup policy to control how closely an incoming prompt must match a cached prompt to return its stored response. A lower score threshold means that prompts must have higher semantic similarity to return cached responses. Prompts with scores above the threshold don't use the cached response.

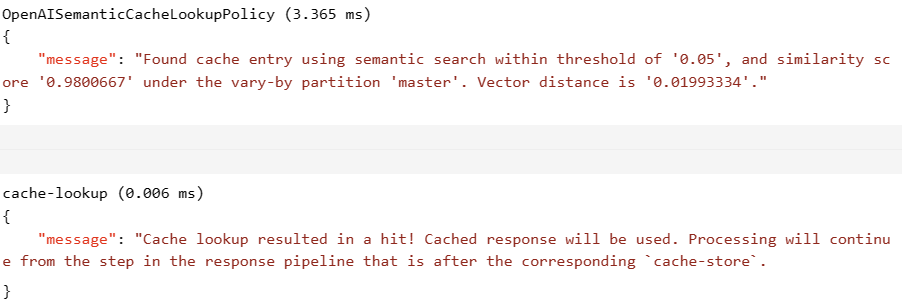

For example, if the cache is used, the Output section includes entries similar to the following screenshot:
